Description
Save big on this OPEN BOX special! This is a near mint item at a discounted price.

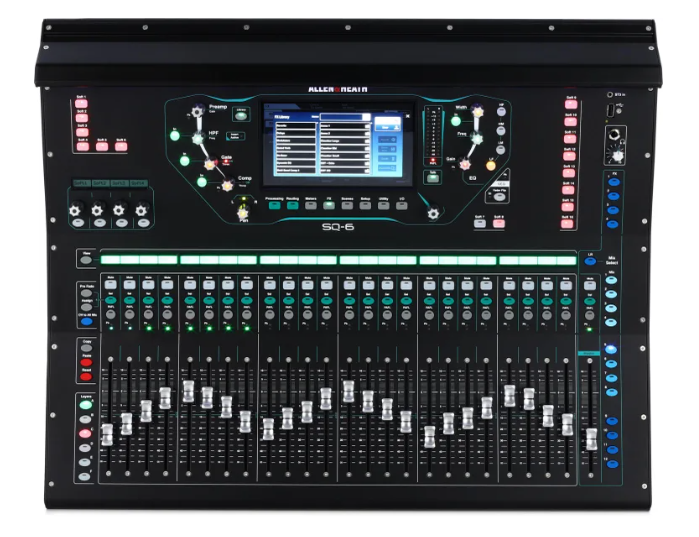

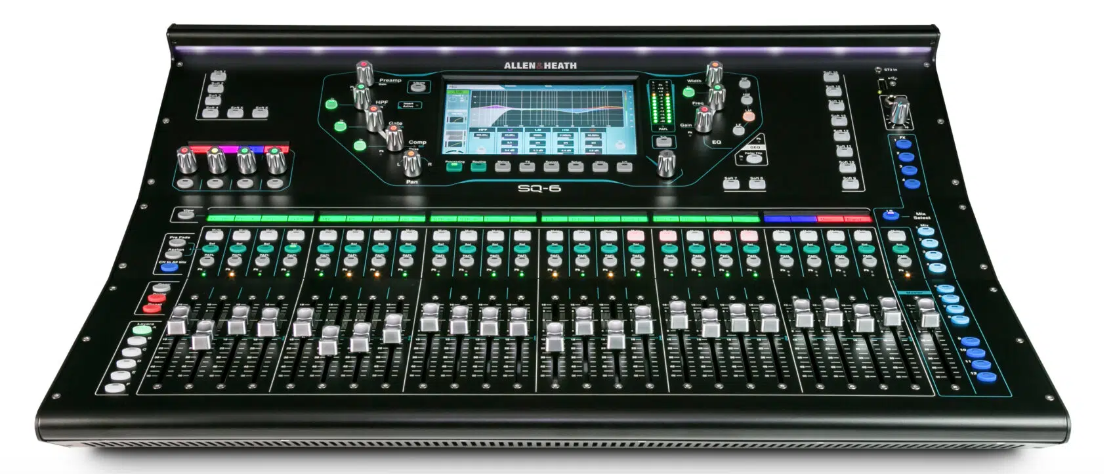

The Allen & Heath SQ-6 is built on the acclaimed XCVI 96kHz FPGA audio engine, delivering powerful live sound performance with pristine audio quality and ultra-low latency under 0.7ms. This 48-input digital mixer provides exceptional flexibility for live music, worship, broadcast, and educational use. With up to 12 stereo mixes, eight stereo FX engines, and a 32×32 USB interface, it’s a top choice for professional sound engineers and venues seeking reliable performance and superior sound.
Key Features
-
48-input digital mixer powered by Allen & Heath’s XCVI 96kHz FPGA engine
-
Best-in-class audio clarity with less than 0.7ms latency
-
25 motorized faders across 6 customizable layers for quick, hands-on control
-
Up to 12 stereo mixes in addition to main LR output
-
SQ MixPad app (iOS/Android/macOS/Windows) for wireless mixing and offline prep
-
SQ4You app lets up to 8 performers create their own monitor mixes
-
3 stereo matrices and 8 stereo FX engines with dedicated returns
-

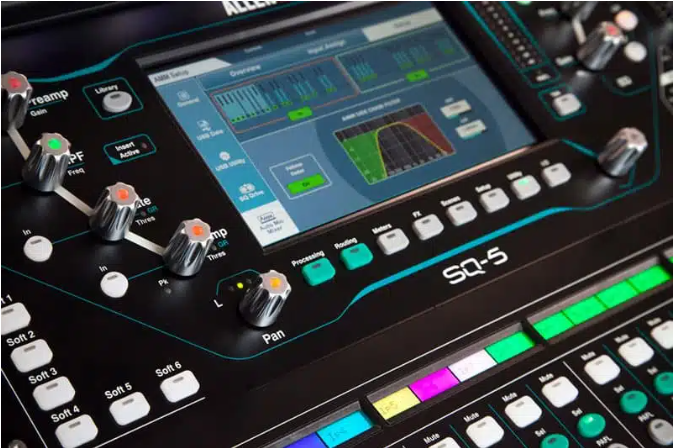

7-inch capacitive touchscreen for intuitive navigation
-
SLink port for remote I/O expansion and 64-channel network audio port
-
Built-in 32×32 USB interface for multitrack recording
-
SQ-Drive for direct recording to USB
-
8 assignable softkeys and automatic mic mixing for large setups
-
AES digital output; rack mountable for versatile installation
Technical Specifications
-
Type: Digital Mixer
-
Channels: 48
-
Mic Preamps: 24 x XLR (mic/line) with phantom power
-
Inputs (Other): 2 x 1/4″ (ST1), 2 x 1/4″ (ST2), 1 x 1/8″ (ST3)
-
Main Outputs: 2 x 1/4″ (A/B), 2 x XLR (L/R)
-

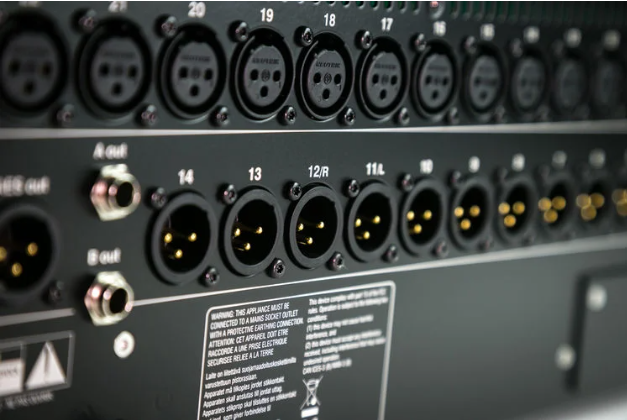

Additional Outputs: 14 x XLR (stereo mixes), 1 x XLR (AES) digital out
-
Bus/Groups: 36
-
Inserts: Internal Pre EQ/Compressor
-
Talkback: 1 x XLR
-
MIDI I/O: USB (control)
-
Data I/O: 1 x EtherCon (dSnake/DX mode/gigaACE), 1 x Ethernet RJ-45 (LAN TCP/IP)
-
Headphones: 1 x 1/4″
-
USB: Type A & Type B ports (32×32 recording/playback)
-
Remote: 1 x 1/4″ (footswitch)
-
Expansion Slot: 1 x Option card (Dante, Waves)
-
Faders: 25 x 100mm motorized
-
Resolution: 24-bit/96kHz
-
EQ: Parametric & 28-band Graphic EQ
-
Effects: Delay, Reverb, Chorus, Flanger, Phaser (8 RackFX engines)
-
DAW Control: USB MIDI
-
Display: 7″ color touchscreen
-
Storage: USB Type A (16×16 recording)
-
Software: Wireless remote apps for iPad/Android
-
Power: AC Adapter
-
Dimensions: 7.8″ H x 20.3″ D x 25.1″ W
-
Weight: 29.3 lbs
-
Manufacturer Part Number: AH-SQ-6
Fast & Reliable Shipping
We offer worldwide shipping (rates vary by destination). U.S. orders ship within 1 business day of payment. Expedited shipping to HI and AK available at additional cost. All items are insured and securely packaged using custom-made, double-walled boxes for safe delivery. Please note: large packaged items shipped to PO boxes may incur extra fees. Orders over $50 require a signature unless waived by the buyer.
Returns & Buyer Protection
A 10% restocking fee applies to all returned non-defective items.
Your purchase is protected under Reverb Buyer Protection for a safe and confident transaction.
# Scott – Ecommerce Sales Rep – 10/24/2025 #
The Allen & Heath SQ-6 Digital Mixer is your go-to professional mixing console for high-quality, low-latency audio and unmatched versatility — perfect for live sound, studio work, and beyond.
Check out Allen & Heath’s official video on Mixers
