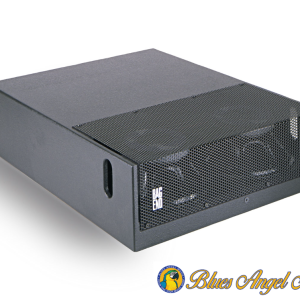

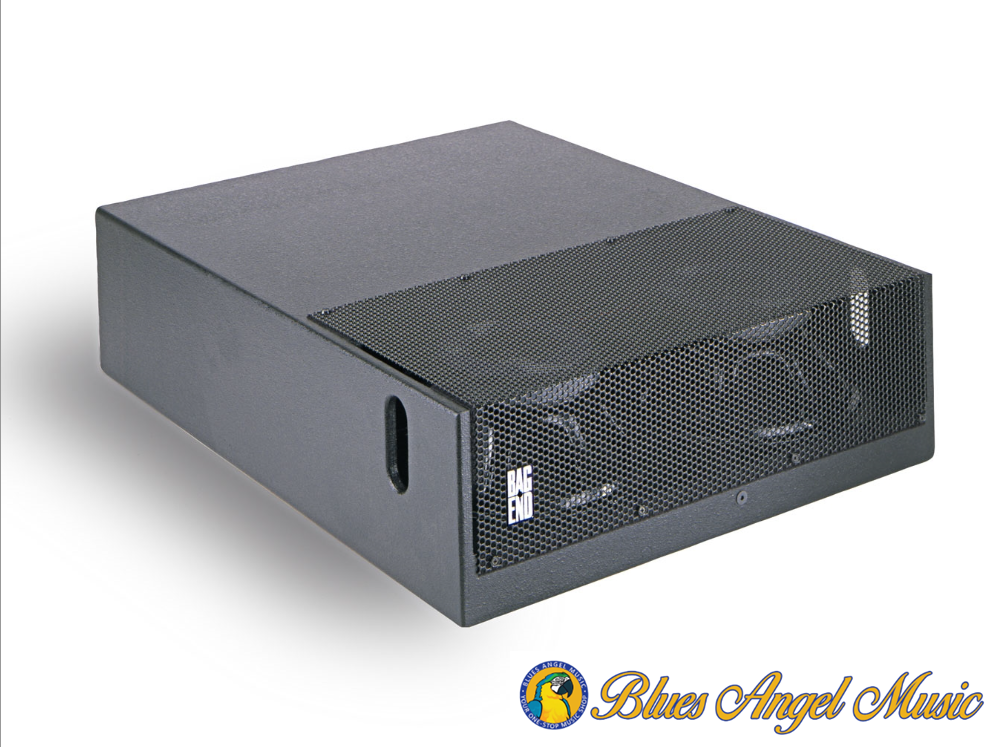

Bag End IPD12E-DA Self-Powered Infrasub — Brand New
This is a BRAND NEW Bag End IPD12E-DA Self-Powered Infrasub.
Please take a close look at all photos and feel free to reach out with any questions!
The Bag End IPD12E-DA is a precision-engineered, low-profile, self-powered double-12″ subwoofer designed for permanent installations requiring extreme low-frequency extension, accuracy, and reliability. Featuring dual sealed Infrasub™ chambers, a Minima 7™ internal amplifier, and built-in Infra™ processing, this system converts any full-range signal into a flat, ultra-deep low-frequency output down to an incredible 8 Hz.
The IPD12E-DA also incorporates Bag End’s Dynamic Filter™ technology, providing automatic overload protection at a preset threshold with virtually no audible artifacts — ensuring clean, powerful bass under heavy load. Its pair of balanced summing XLR inputs with a loop-through output offer excellent noise rejection, perfect for installations where grounding and wiring conditions may be less than ideal.
Built from 18mm 13-ply birch with a rugged Ro Tex™ water-borne finish, a heavy-duty steel grille, and available fly-point hardware, this unit is engineered for professional environments including theaters, studios, clubs, churches, and high-end commercial installations.
If you’re seeking deep, accurate, and extremely controlled low end in a compact footprint, the IPD12E-DA is one of the best solutions on the market.
IPD12E-DA Specs
System
-
Dual Infrasub™ sealed chambers (1.4 ft³ each)
Enclosure
-
18mm 13-ply birch plywood
-
Black Ro Tex™ true water-borne environmental finish
-
16-gauge black powder-coated perforated steel grille
LF Components
-
EL-12B 12″ Extended transducer
-
Infra™ cone
-
2.5″ voice coil
-
80 oz magnet
Input / Output
-
Two XLR balanced summing inputs
-
One XLR male loop-through
-
Input impedance: 10k ohms
-
Input CAL sensitivity: +4 dBu
Internal Amplification
-
Minima 7™ amplifier
-
Max continuous amplifier power: 750 W
-
LED Indicators:
-
Green = Power
-
Yellow = Dynamic Filter™ threshold
-
Power Requirements
-
Auto-sensing 100 / 120 / 240 V
-
2.3 A @ 120 V
-
1.2 A @ 240 V
Hardware
-
Optional F4 fly points
-
Safe working load: 200 lbs
Performance
-
Crossover: Internal Infra™ integrator
-
Frequency response: 8 Hz – 95 Hz (±3 dB)
-
Low-frequency limit: 8 Hz
-
Max calculated continuous acoustic output (Half Space @ 1m):
-
10 Hz – 88 dB SPL
-
20 Hz – 100 dB SPL
-
40 Hz – 112 dB SPL
-
80 Hz – 123 dB SPL
-
-
Polarity: Positive asymmetrical signal on pin 2 → positive acoustic pressure

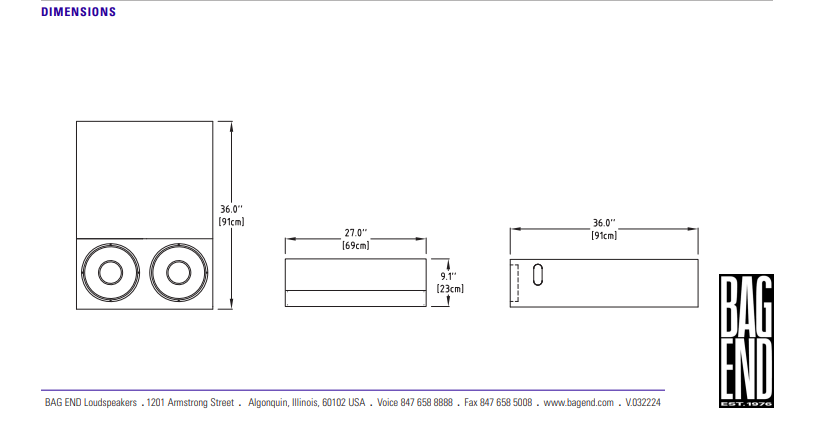

IPD12E-DA – Dimensions / Weight
-
9.125″ H × 27″ W × 36″ D
-
24 cm × 68 cm × 90 cm
-
82 lbs / 37 kg
Options
-
REMCON-2 Dynamic Filter™ threshold remote indicator
-
Custom finish options available
