Description
Save big on this Mint Open Box Crestron AMP-X75 in Black. This unit is in excellent condition and includes everything shown. Compare our price to the regular retail of $578.00. Please review our description and photos and feel free to contact us with any questions.
The Crestron AMP-X75 is a highly efficient, flexible amplifier designed to save energy, space, and installation time. Its modular, quarter-rack design makes it ideal for commercial environments, classrooms, boardrooms, corporate AV, hospitality, and distributed audio systems. It supports both LoZ and Hi-Z operation, provides 75W of clean output in bridged or 70V/100V mode, and offers balanced and unbalanced inputs for maximum compatibility. With robust protection circuitry and convection cooling, the AMP-X75 delivers quiet, reliable performance in virtually any environment. Ships with all hardware required for surface mounting, rack mounting, and ganging multiple amps together.
Specs
• Input Signal Type: Balanced or unbalanced analog line-level
• Output Power:
– LoZ 8Ω (single-ended): 35W (1 or 2 ch)
– LoZ 4Ω (single-ended): 35W (1 or 2 ch)
– LoZ 8Ω (bridged): 75W
– 70V / 100V Hi-Z: 75W
• Frequency Response: 20Hz–20kHz ±0.5 dB @ 1W
• High-Pass Filter (Hi-Z): 80Hz, -12 dB/oct
• THD+N: <0.1% @ 1kHz
• S/N Ratio: >103 dBA
• Crosstalk: -75 dB @ 1kHz
• Input Sensitivity: +4 dBu balanced, -10 dBV unbalanced
• Gain: 23 dB @ 8Ω
• Protection: Clipping, over-current, under-voltage, over-temp, DC, HF
• Standby Time: 25 minutes with no signal
• Wake Time: 0.1 seconds

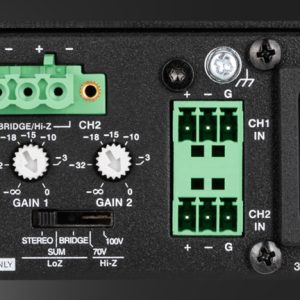

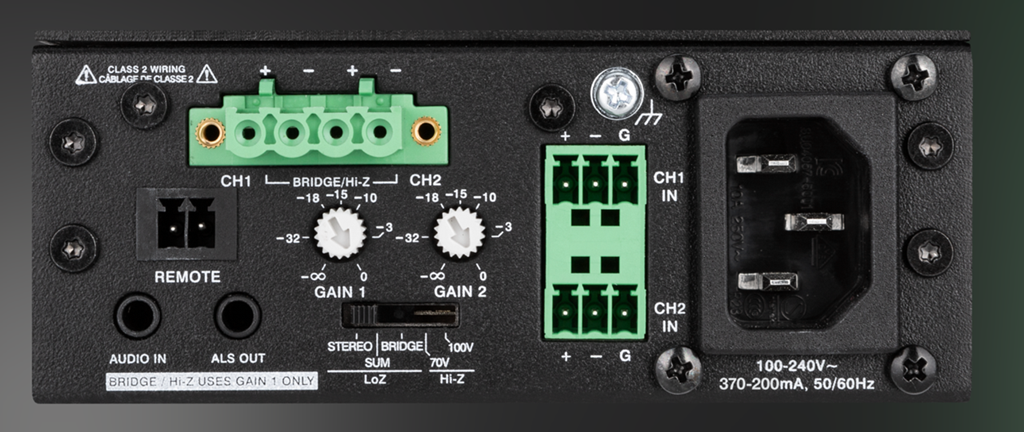

Connectors
• Speaker Output: 4-pin 12A plug (up to 12 AWG)
• Audio In (Unbalanced): 3.5mm TRS, max +7 dBV
• Audio In (Balanced): (2) 3-pin terminal blocks, max +20 dBu
• ALS Out: 3.5mm fixed-sum line-level output
• Remote: 2-pin dry contact standby
• Ground Lug: 6-32 screw
• Power: IEC C14 (100–240V AC)

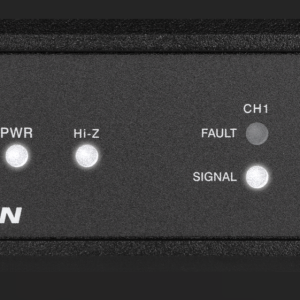

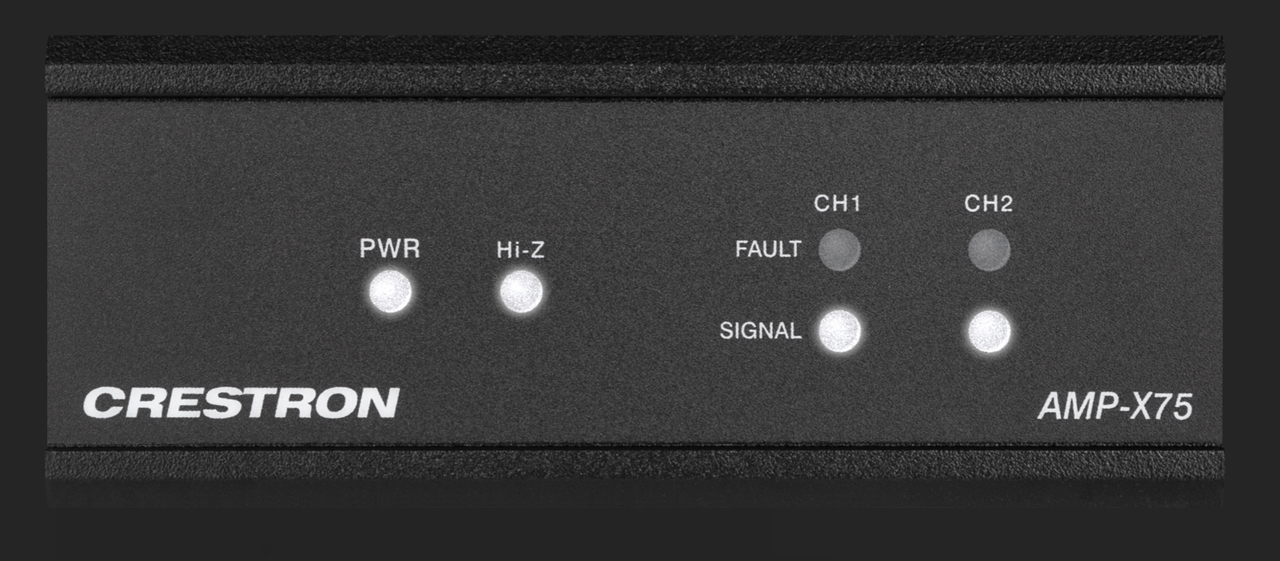

Controls & Indicators
• LEDs: Power, Hi-Z, Signal, Fault
• Gain Controls: Two screwdriver-adjustable rotary knobs
• Mode Switch: Stereo, Sum, Bridge, 70V, 100V
Power & Environmental
• Current Draw: 370–200 mA @ 100–240VAC
• Power Consumption: 18.63W (1/8 power at 4Ω), 7.60W idle, 0.41W standby
• Temperature Range: 41–104°F (5–40°C)
• Humidity: 10–90% non-condensing
• Heat Dissipation: 63.6 BTU/hr (1/8 power), 25.9 BTU/hr idle
Construction & Mounting
• Chassis: Metal, fanless convection cooling
• Front Panel: Black metal with polycarbonate overlay
• Mounting: Freestanding, surface mount, or 1/4-width 1RU rack mount (hardware included)
Dimensions & Weight
• Height: 1.75 in (44 mm)
• Width: 4.33 in (110 mm) or 19 in with brackets
• Depth: 8.78 in (223 mm)
• Weight: 2.1 lb (0.95 kg)
Shipping
We offer worldwide shipping. International buyers, please contact us for an accurate quote before purchasing. All items ship insured within 1 business day in the continental U.S. Expedited, HI, and AK shipping options are available. Large packaged items shipping to PO Boxes may incur additional charges. Orders over $50 require a signature unless you request otherwise, and opting out of signature confirmation transfers delivery risk to the buyer.
Returns
Original shipping costs are non-refundable on non-defective returns, and a 10% restocking fee applies to non-defective returns.
