Description

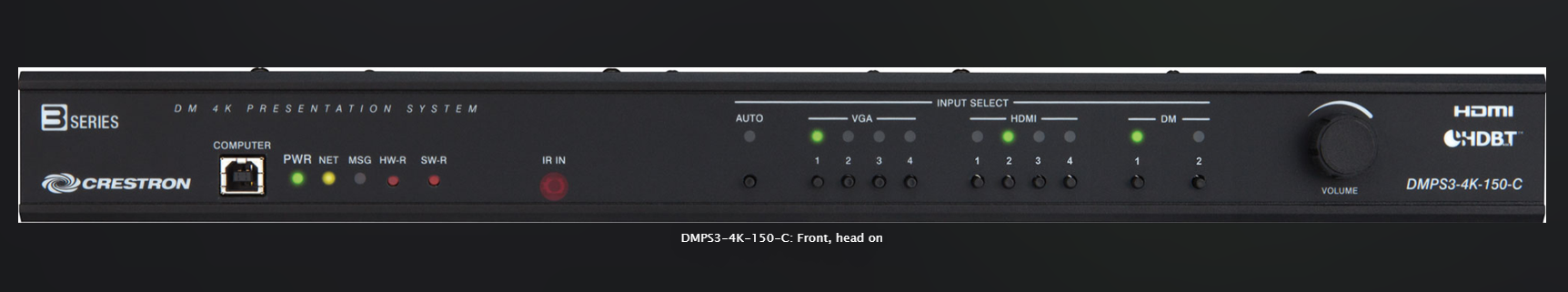

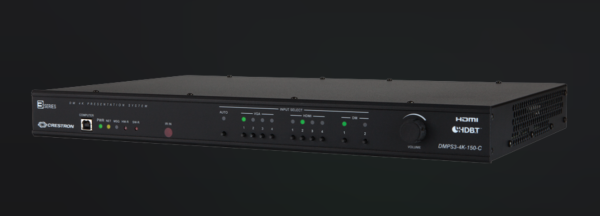

Crestron DMPS3-4K-150-C 3 Series 4K DigitalMedia Presentation System – Black | MINT OPEN BOX
Save big on this MINT OPEN BOX Crestron DMPS3-4K-150! Compare to the regular retail price of $5,750.00. This system delivers professional-grade 4K multi-format presentation switching with seamless DigitalMedia™ and HDBaseT® connectivity. Ideal for conference rooms, classrooms, and any AV environment where high-quality video and audio distribution is critical.
Crestron DMPS3-4K-150 Key Features
-
3 Series 4K DigitalMedia Presentation System
-
Multi-format 4K switcher with automatic operation
-
Supports up to four Crestron Connect It™ Cable Caddies
-
Built-in .AV Framework™ technology for simplified configuration
-
Fully programmable for custom applications
-
HDMI, DM 8G+, and HDBaseT connectivity
-
Stereo audio DSP and digital/analog source mixing
Audio – General
-
10×1 multi-format stereo source switcher (6×1 organization)
-
Auto-detects digital and analog sources
-
Single-channel gated mic preamp with DSP
-
Two independent mic/source mixers for analog and digital outputs
-
Digital audio mixer bypass for multichannel pass-through
-
24-bit / 48 kHz A/D and D/A conversion
-
Frequency response: Digital: 20 Hz–20 kHz ±0.5 dB; Analog: 20 Hz–20 kHz ±0.5 dB; Microphone: 20 Hz–20 kHz ±0.7 dB
-
Signal-to-noise ratio (S/N): Digital >108 dB, Analog >103 dB
-
THD+N: Digital <0.002%, Analog <0.005%, Microphone <0.05%
-
Stereo separation: Digital >108 dB, Analog >103 dB
Audio – Microphone Input
-
Mono analog mic level input with phantom power (enable/disable)
-
Gain: 0 to +60 dB with Mute
-
4-band EQ: 50–200 Hz, 200–800 Hz, 800 Hz–3.2 kHz, 3.2–12.8 kHz
-
Gating: Threshold -80 to 0 dB, Depth -80 to 0 dB, Attack 1–250 ms, Release 1–1000 ms, Hold 1–200 ms
-
Compression: Threshold -80 to 0 dB, Ratio 1:1 to 10:1, Attack 1–250 ms, Release 1–1000 ms, Hold 1–200 ms, Hard/Soft knee
Audio – Source Inputs
-
Supports Audio Inputs 1–4, HDMI 1–4, DM Inputs 1–2
-
Analog 2-channel, HDMI (Dual-Mode DP compatible), DM 8G+, HDBaseT
-
Digital formats: Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio, LPCM up to 8 channels
-
Input compensation: ±10 dB
Audio – Analog Line Output
-
Stereo 2-channel output
-
Adjustable mic/source/master volume (-80 to +10 dB) with mute, pan/balance options
-
Bass/Treble ±12 dB
-
10-band graphic EQ, GEQ center frequencies 31.5 Hz – 16 kHz, ±12 dB gain
-
Delay: 0–80 ms
-
Limiter: Threshold -80 to 0 dB, Ratio 1:1–10:1, Attack 1–250 ms, Release 1–1000 ms, Hard/Soft knee
Audio – Digital Output
-
HDMI, DM 8G+, HDBaseT output
-
Supports Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio, LPCM up to 8 channels
-
Mic/source/master volume adjustable (-80 to +10 dB), mute, pan/balance

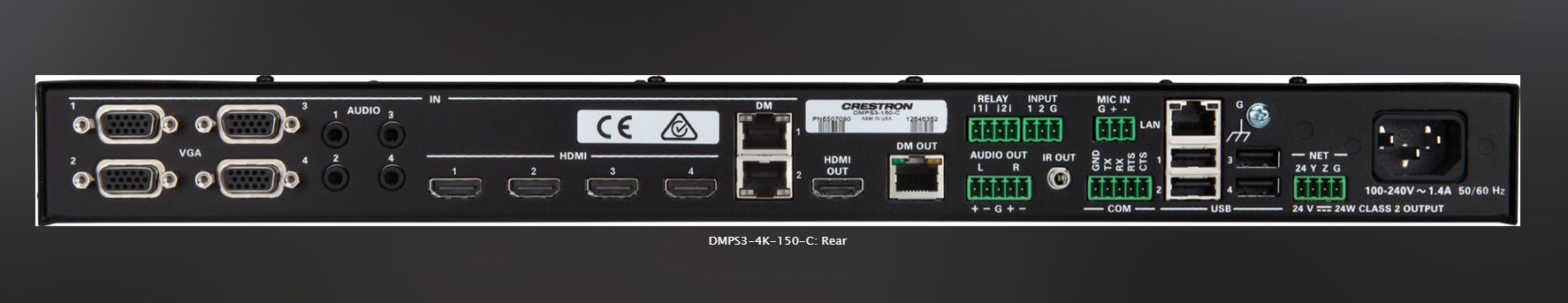

Connectors – Audio/Video Inputs
-
VGA IN 1–4: HD15 female, supports VGA, RGB, component, S-Video, composite
-
AUDIO IN 1–4: 3.5 mm TRS, unbalanced stereo, 32k Ω, max 2.8 Vrms
-
HDMI IN 1–4: 19-pin Type A, HDMI/DVI/Dual-Mode DP compatible
-
DM IN 1–2: 8-pin RJ45, DM 8G+, HDBaseT, PoDM PSE
-
MIC IN: 3-pin 3.5 mm, balanced, -60 to 0 dBV, 6.5k Ω, phantom power 48V

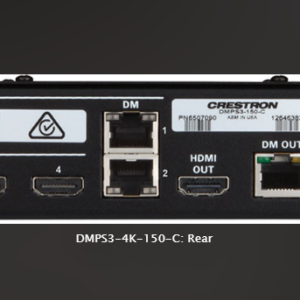

Connectors – Audio/Video Outputs
-
HDMI OUT: 19-pin Type A, HDMI/DVI
-
DM OUT: 8-pin RJ45, DM 8G+, HDBaseT, PoDM PSE
-
AUDIO OUT: 5-pin 3.5 mm terminal block, balanced/unbalanced, max 4 Vrms balanced / 2 Vrms unbalanced
Connectors – Control & Power
-
RELAY 1–2: 4-pin terminal, 2 isolated relays, 1A @ 30V AC/DC
-
INPUT 1–2: 3-pin terminal, 2 programmable digital inputs
-
IR OUT: 3.5 mm mini-jack, IR up to 1.2 MHz
-
COM: 5-pin RS-232 bidirectional, up to 115.2k baud
-
LAN: RJ45, 10/100Base-TX Ethernet
-
USB 1–4: USB Type A, USB 2.0 host
-
NET: 4-pin Cresnet master port, 24W Cresnet power
-
Main Power: IEC 60320 C14, 100–240V~1.4A, 50/60 Hz
-
Front USB Type B console, IR IN sensor (36–38 kHz)

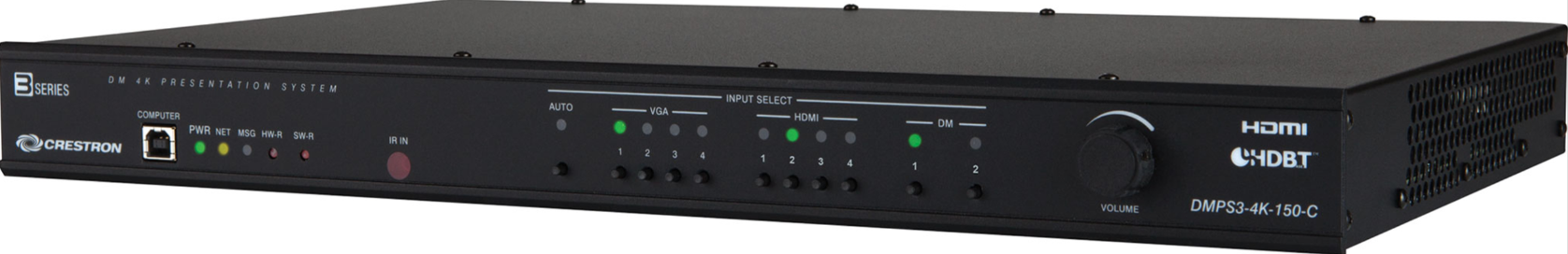

Controls & Indicators
-
PWR: Bi-color green/amber LED
-
NET: Yellow LED for Cresnet activity
-
MSG: Red LED for internal error
-
HW-R/SW-R: Hardware/software reset buttons
-

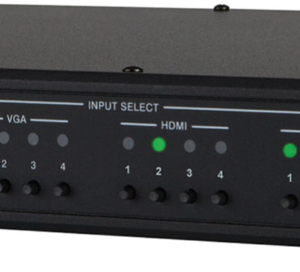

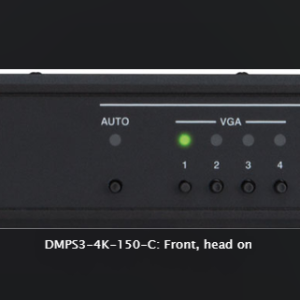

AUTO INPUT SELECT, VGA/HDMI/DM input selectors with LED indicators
-
VOLUME: Continuous rotary encoder
-
DM IN/OUT and LAN LEDs for link/video/HDCP status
Power
-
Main Power: 1.4 A @ 100–240V AC, 50/60 Hz
-
Typical Consumption: 42 W, idle 27 W
-
Available Cresnet Power: 24 W
-
PoDM: IEEE 802.3at PSE, 15.4 W per DM port
-
HDBaseT PoE: IEEE 802.3at PSE, 15.4 W per port
Environmental
-
Operating Temperature: 41–104°F (5–40°C)
-
Humidity: 10–90% RH (non-condensing)
-
Heat Dissipation: 142 BTU/hr typical, 93 BTU/hr idle
Enclosure
-
Metal chassis, black, fan-cooled, vented sides
-
Front panel metal with polycarbonate label overlay
-
Mounting: Freestanding, 1 RU 19-inch rack, or under-table (included brackets)
Dimensions & Weight
-
Height: 1.74 in (45 mm) without feet
-
Width: 17.28 in (439 mm); 18.94 in (482 mm) with rack ears
-
Depth: 10.47 in (266 mm)
-
Weight: 6.4 lb (2.9 kg)
