Description

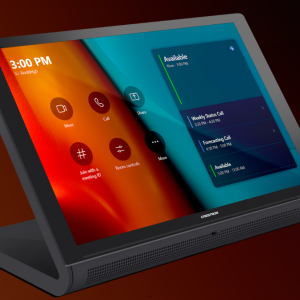

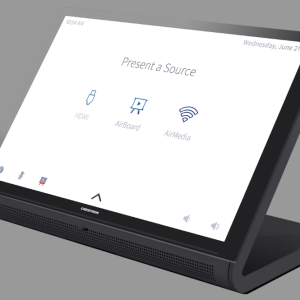

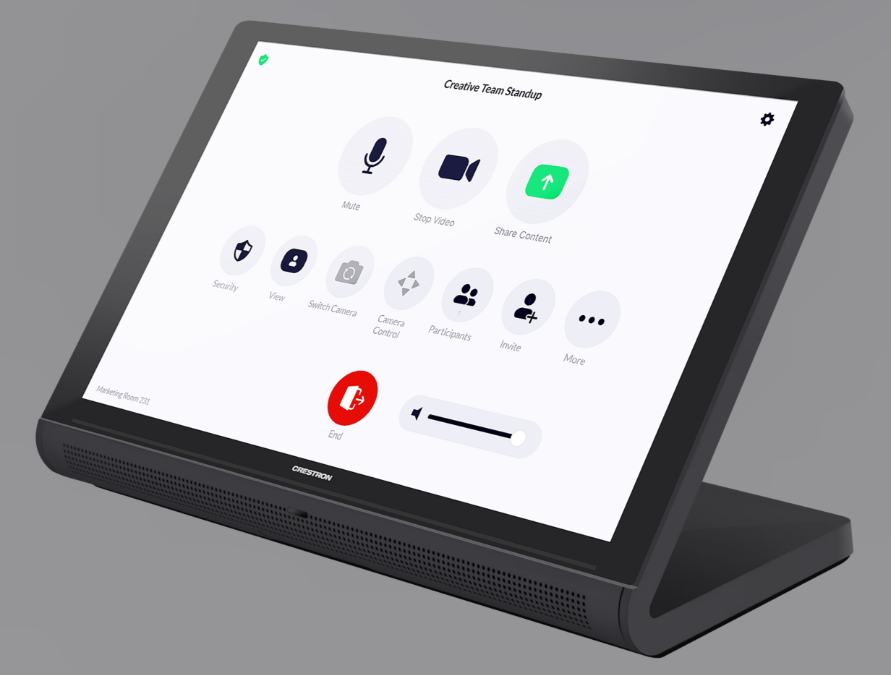

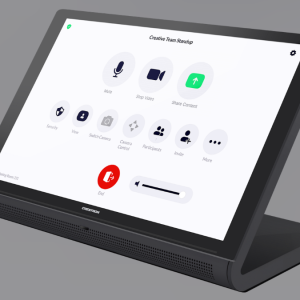

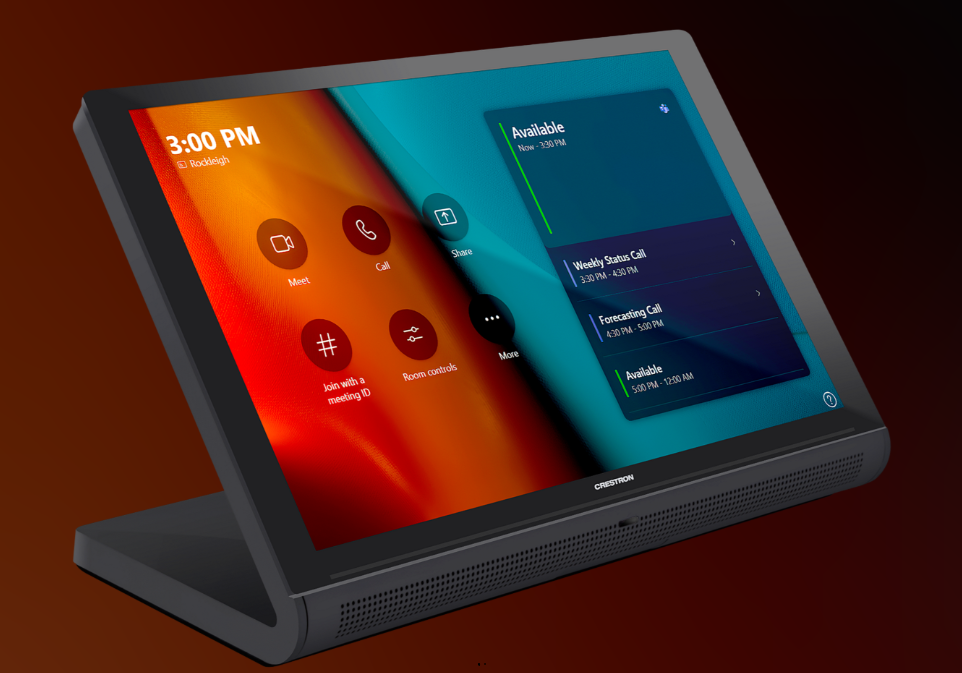

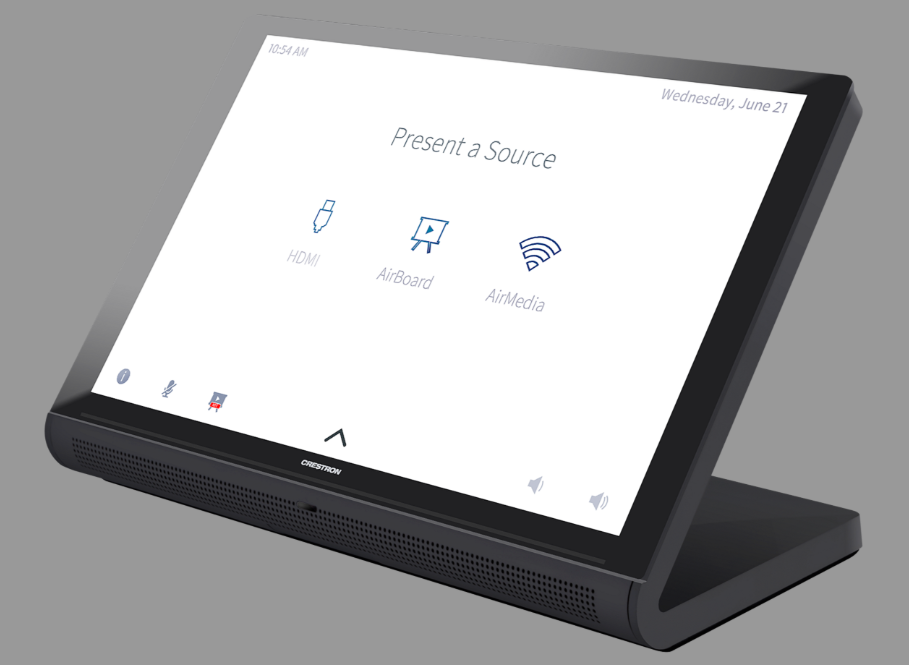

The Crestron TS-1070-B-S 10.1″ Tabletop Touch Screen delivers a sleek, powerful, and intuitive interface for conference rooms, classrooms, command centers, and high-end smart home control. This is an OPEN BOX – near mint unit, offering exceptional savings compared to its regular retail price of $3,050.00.

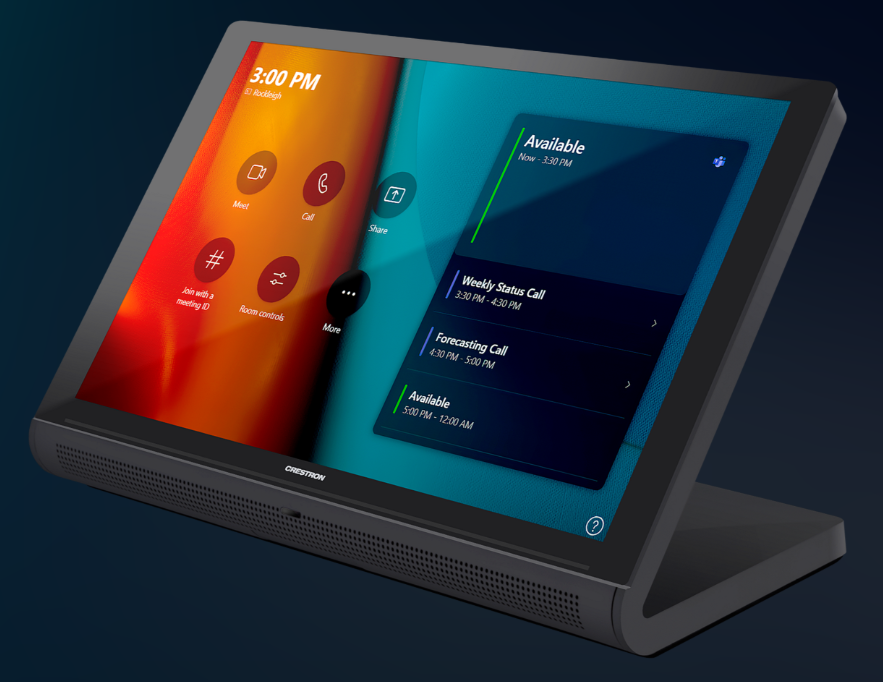

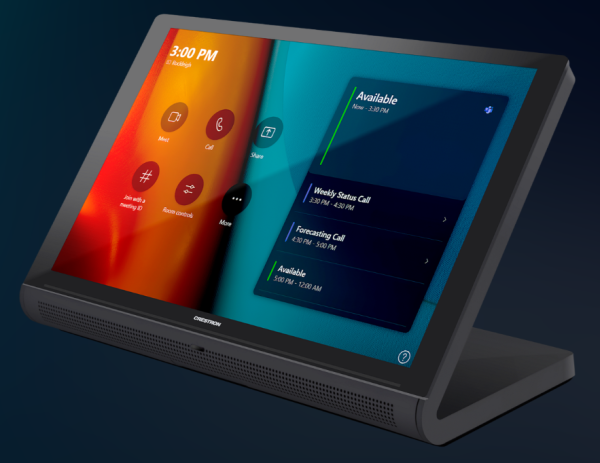

Featuring a vivid 10.1-inch TFT active-matrix color LCD display (1920×1200 WUXGA), the TS-1070 provides stunning clarity, wide viewing angles, and edge-lit LED illumination with auto-brightness adjustment. Its 5-point projected capacitive multitouch surface ensures smooth, responsive interaction.
Designed for maximum versatility, this model includes Crestron HTML5, Smart Graphics®, built-in web browsing, customizable icons, and native apps for room scheduling, conferencing, Crestron Home®, Zoom Rooms™, and Sonos®. The integrated H.265/H.264 streaming decoder, Wi-Fi connectivity, and PoE+ power support make installation fast and flexible.
Additional features include a Rava® SIP intercom, built-in microphone and speakers, multilingual support, advanced security protocols, and compatibility with both Crestron Fusion® and third-party scheduling systems. With robust Ethernet connectivity, Bluetooth beacon hardware, and a USB host port for scheduling accessories, the TS-1070-B-S is engineered for professional-grade performance in any environment.
We invite you to review our pictures and reach out with any questions—this is a fantastic opportunity to save on a premium Crestron control interface.
TS-1070-B-S – Features
Touch Screen Display
-
TFT active-matrix color LCD
-
10.1 in (257 mm) diagonal
-
16:10 WUXGA aspect ratio
-
1920×1200 resolution
-
400 nits brightness, 1000:1 contrast
-
24-bit color, 16.7M colors
-
Edge-lit LED with auto brightness
-
±80° viewing angles
-
Projected capacitive 5-point multitouch
Buttons
-
(6) Virtual toolbar keys (Power, Home, Lights, Up, Down, Microphone)
-
Per-button show/hide & custom programming
-
Hardware reset pinhole
Graphics Engine
-
Crestron HTML5 & Smart Graphics®
-
Multilanguage web browser & keyboard
-
Screensaver support
-
Streaming video window (H.265/H.264/MJPEG)
-
Native apps for scheduling, Sonos®, Zoom Rooms™, Crestron Home®
Room Scheduling
-
Works with Crestron Fusion®, Microsoft Exchange®, Office 365®, Google Calendar™, CollegeNET® 25Live®, Ad Astra™
-
Support for various third-party apps
Languages
-
Wide multilingual support across Smart Graphics, keyboard, voice recognition, web browser, and room scheduling
Memory
-
2 GB LPDDR3
-
16 GB eMMC pSLC
-
Max project size: 600 MB
Wired Communications
-
100 Mbps Ethernet
-
TCP/IP, UDP/IP, DHCP, SSL, TLS, SSH, SFTP
-
IEEE 802.1X, SNMP, IPv4/IPv6
-
Active Directory authentication
-
USB 2.0 host port
Wireless
-
Wi-Fi 802.11 a/b/g/n/ac (2.4/5 GHz)
-
WPA/WPA2 security
-
Up to 50 ft range
-
Integrated Bluetooth® beacon
Streaming Decoder
-
Supports H.265, H.264, MJPEG video
-
AAC stereo audio
-
Up to 1080p/30fps
Audio
-
Built-in mic & speakers
-
Rava® SIP intercom
-
MP3 audio feedback

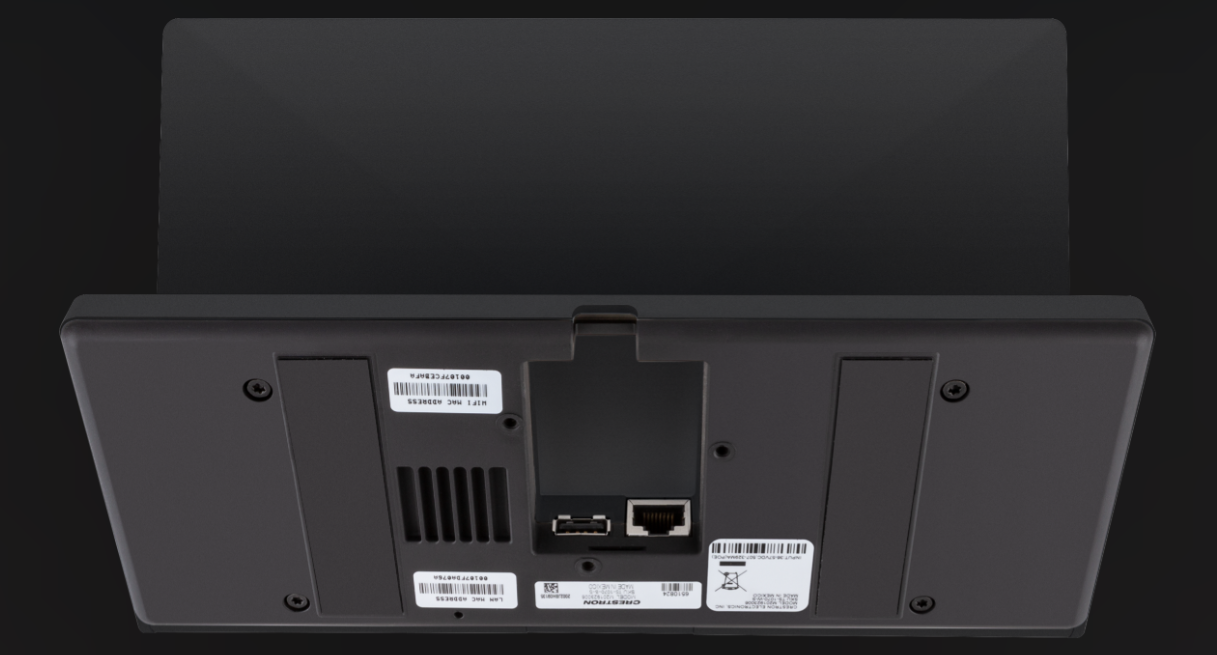

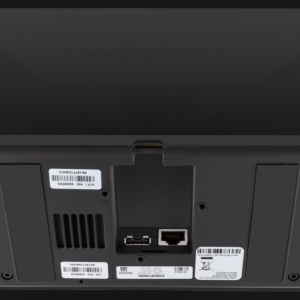

Connectors
-
RJ-45 Ethernet with PoE+
-
USB-A (USB 2.0 host)
Power
-
IEEE 802.3at Type 2 PoE+
-
Typical: 15–18 W depending on configuration
Environmental
-
32–104°F operating temperature
-
10–95% RH non-condensing
-
44 BTU/hr heat dissipation
Construction
-
Black smooth finish
-
Edge-to-edge glass
-

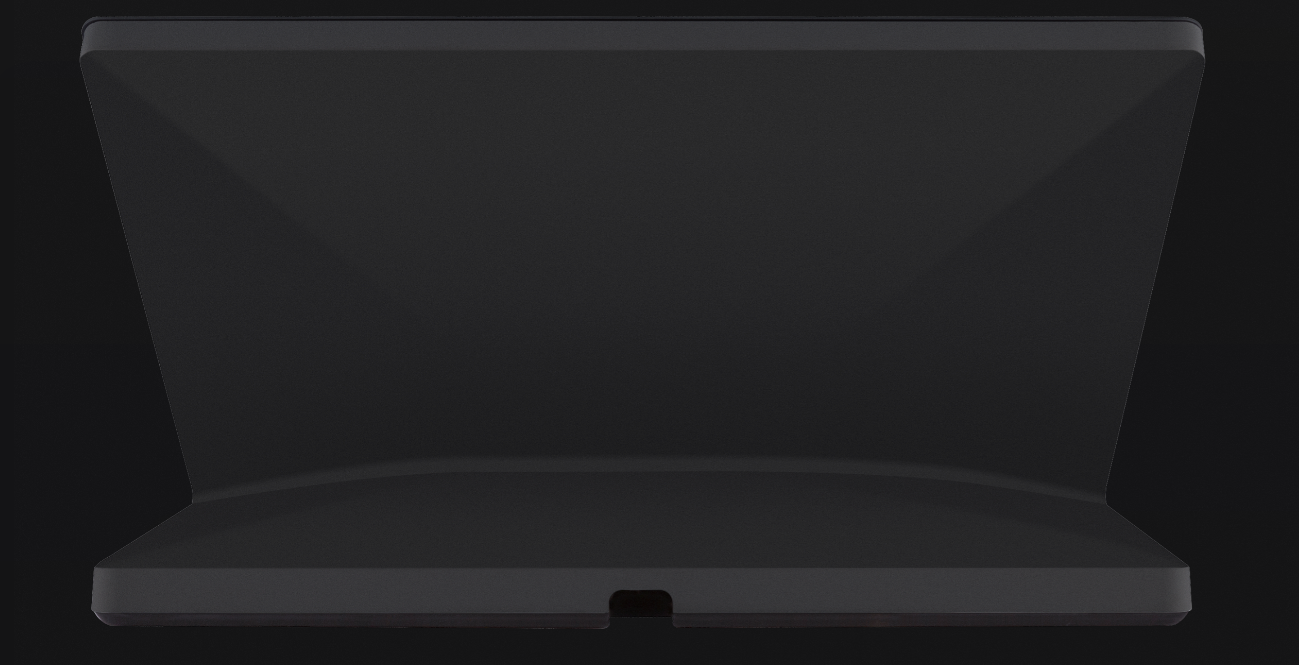

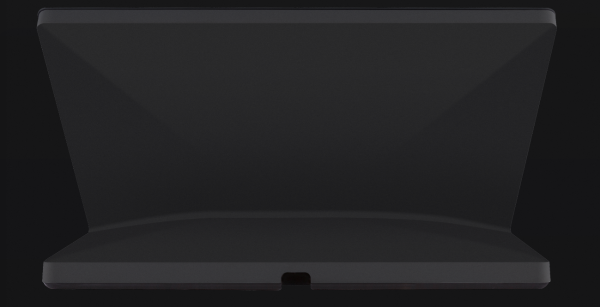

Surface, lectern, EU/UK box mounting options
Dimensions
-
Height: 5.29 in (134 mm)
-
Width: 9.63 in (245 mm)
-
Depth: 4.67 in (119 mm)
