Description

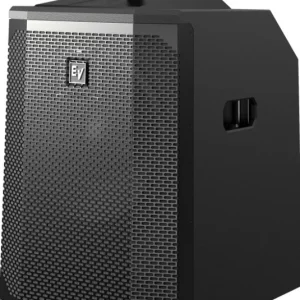

Designed to complement the Evolove50T column speaker array, the Evolve50M Sub is a 1 x 12″ subwoofer with an integrated eight-channel mixer and 1000 watt amplifier. The Evolve50M Sub delivers tight, extended lows, adding power you can feel to the 50T’s column speaker array.
The fully-featured, fully configurable, eight-channel digital mixer was developed in collaboration with Electro-Voice’s sibling brand Dynacord. Featuring multiple inputs with professional-grade preamps and mix functions, the integrated mixer gives you the options you need. In addition to XLR/TRS, RCA, and 3.5mm inputs, the 50M-S is equipped with XLR mix and Aux mix outputs plus high-resolution, low-latency Bluetooth® streaming capability. A range of effects including chorus, delay, flange, and reverb, on two FX channels, add a myriad of options for musicians to fine-tune their tone.
The Evolve50M-S also marks the debut of Electro-Voice’s QuickSmart Link technology. QuickSmart Link lets you digitally connect a pair of Evolve50M subs when you need more I/O or have a larger room to fill. When combined with a pair of Evolve50Ts, QuickSmart Link makes it possible to join two systems for use with larger bands and in a wider variety of locations. The subs can be linked via a standard Ethernet cable to create an uncompressed digital audio connection. Both systems can be paired to, and controlled by, a single mobile device using the QuickSmart Mobile app giving you full control over all audio, effects, and mix functions via your phone or tablet.
Electro-Voice EVOLVE50-SB-US Features:
- 1 x 12″ low-frequency driver
- Onboard 1000-watt amplifier
- Integrated eight-channel digital mixer
- XLR/TRS combo line and microphone inputs
- Separate stereo auxiliary and mix outputs
- Bluetooth capability
- QuickSmart Link technology allows subs to be paired
Electro-Voice EVOLVE50-SB-US Specifications:
- Subwoofer: 1 x 12”
- Amplifier rating: 1000 W
- LF channel rating: 500 W
- HF channel rating: 500 W
- Crossover frequency: 200 Hz
- Connectors
- 4x XLR/TRS combo jack line/mic input
- 2x XLR/TRS combo jack for stereo line input
- 1x 1/4” TRS Hi-Z input
- 1x stereo RCA input
- 1x 3.5 mm stereo input
- 1x wireless stereo Bluetooth® audio input
- 1x 1/4” foot switch input
- 1x XLR mix out output
- 1x XLR aux out output
- 1x RJ45 QuickSmart Link connector
- Enclosure: 15 mm plywood
- Colors: Black or white
- Dimensions: 20.9 x 13.6 x 18.5 (530 x 345 x 471)
- Weight: 44.66 (20.3)
- Power consumption: 100-240 V AC, 50-60 Hz, 1.5-0.6 A
