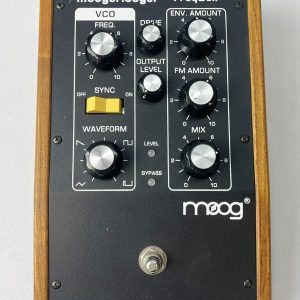

Moog MF-107 Moogerfooger FreqBox – analog effects/FX Pedal

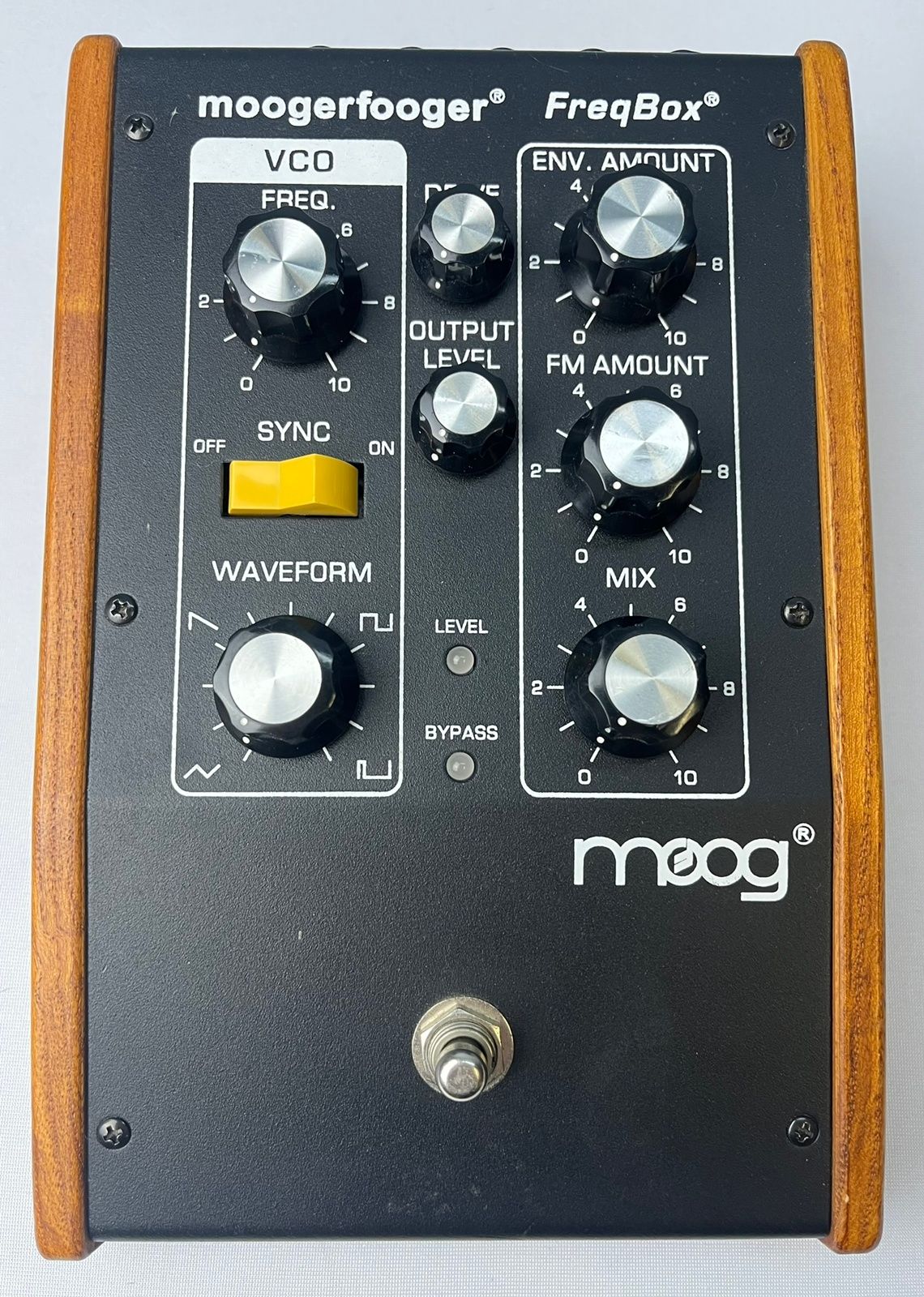

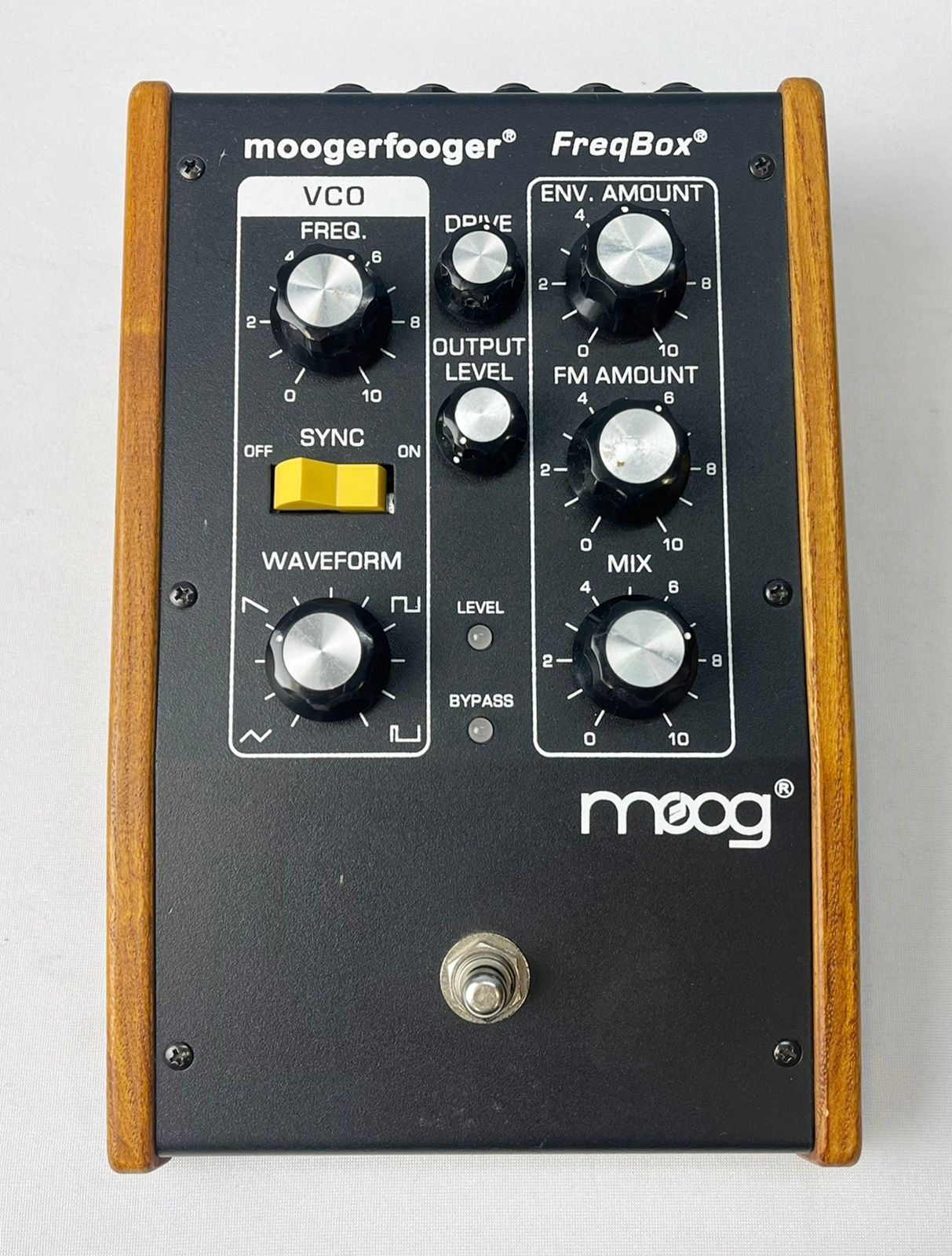

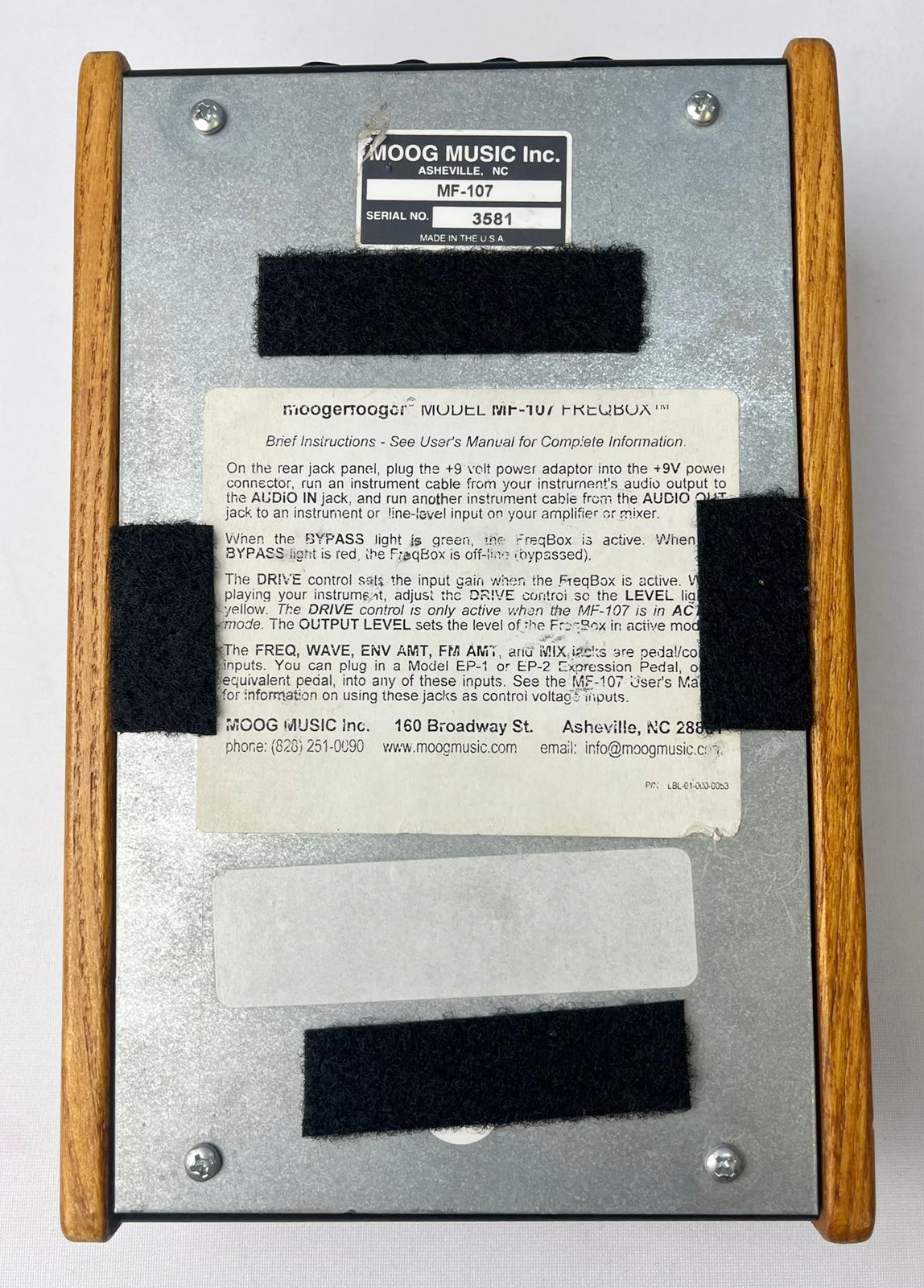

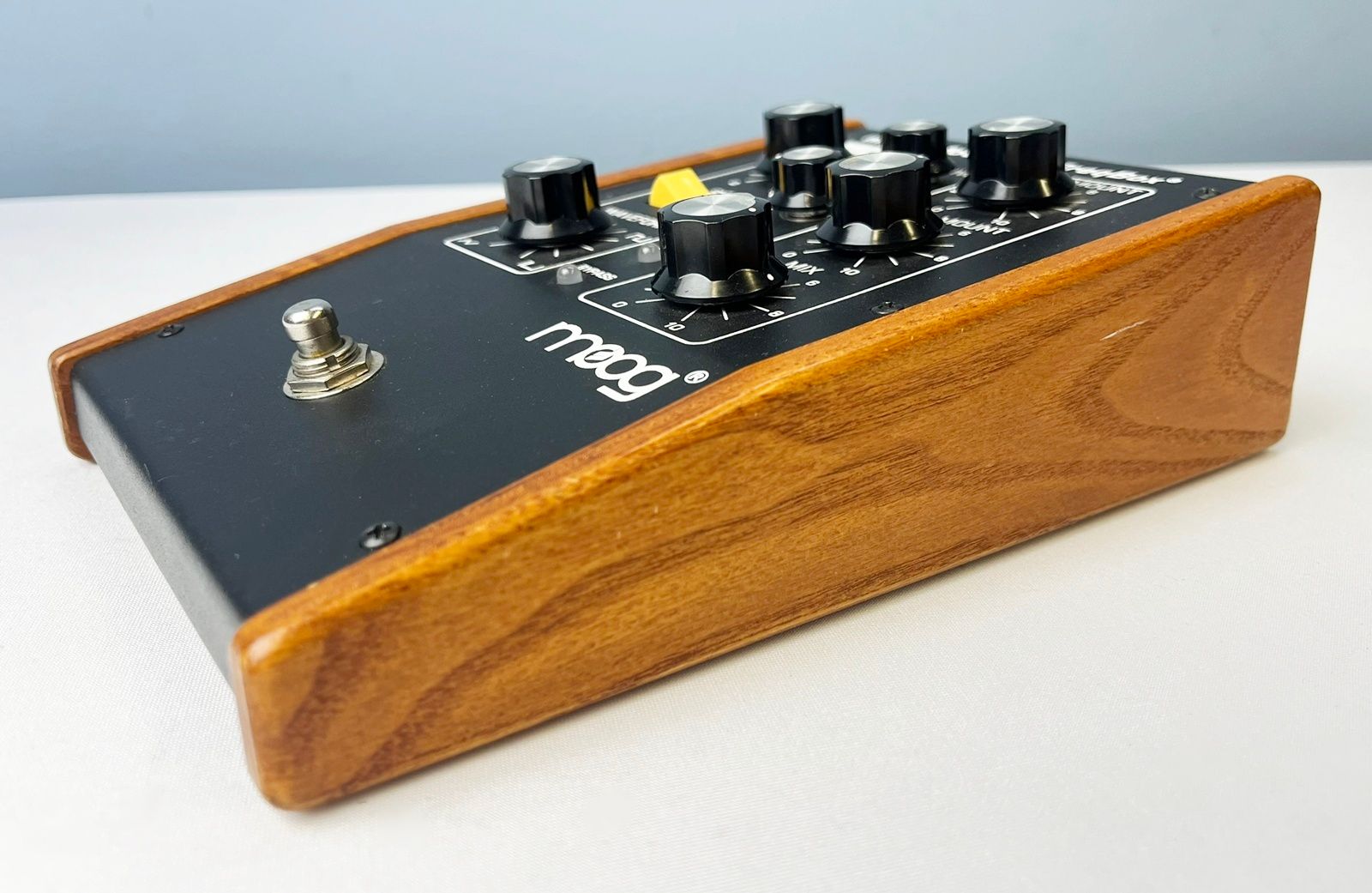

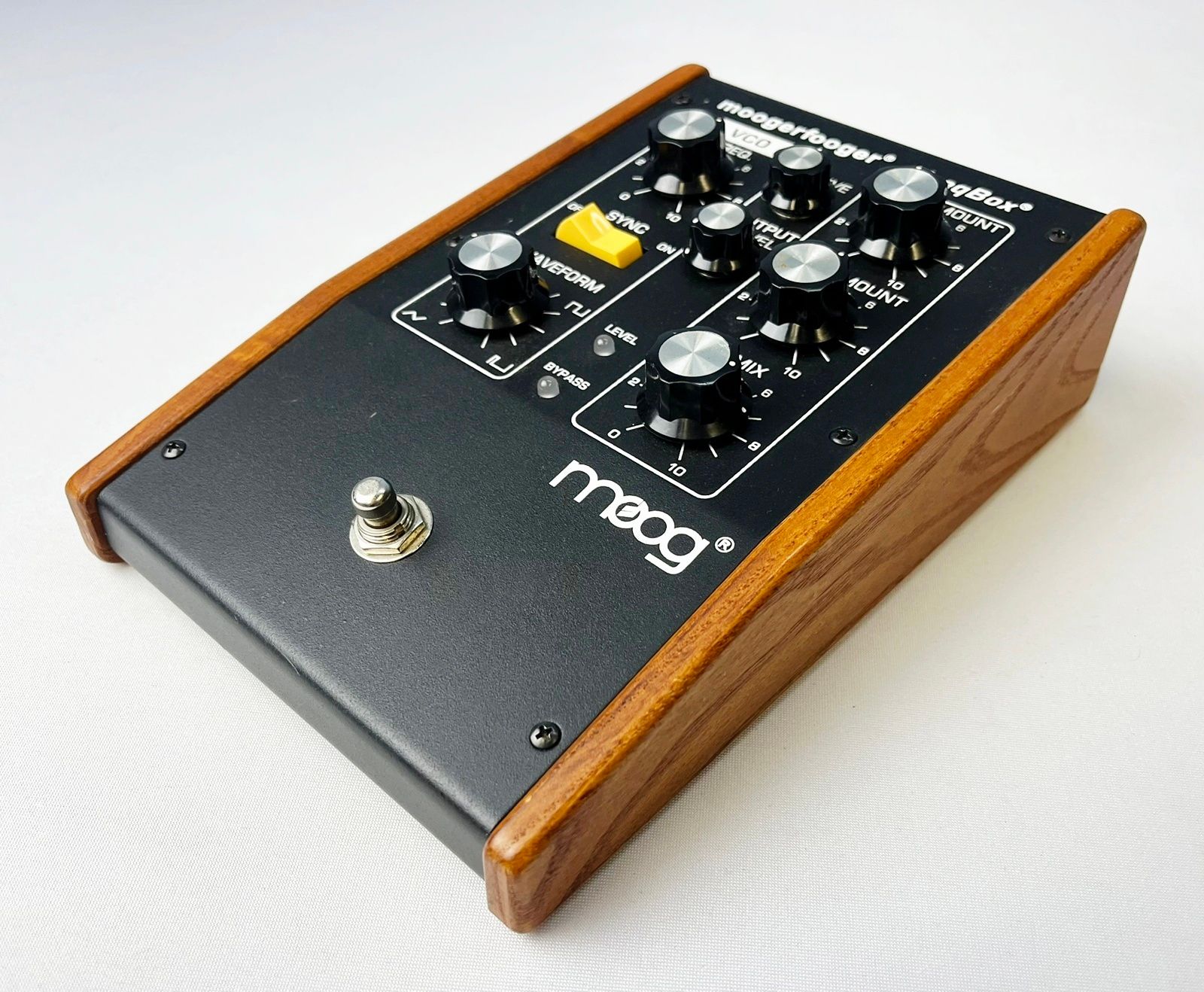

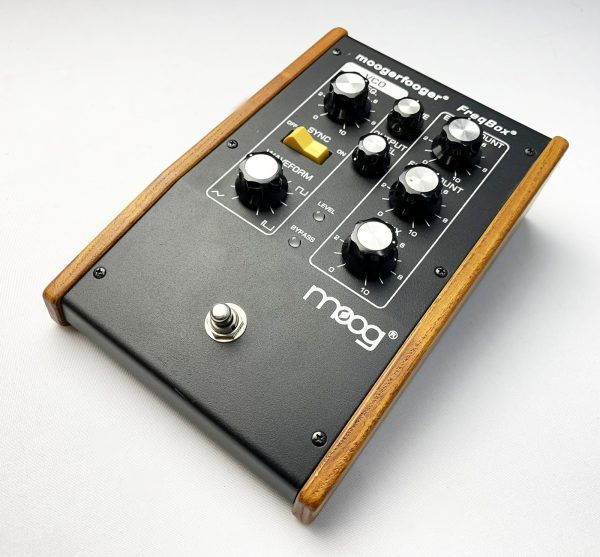

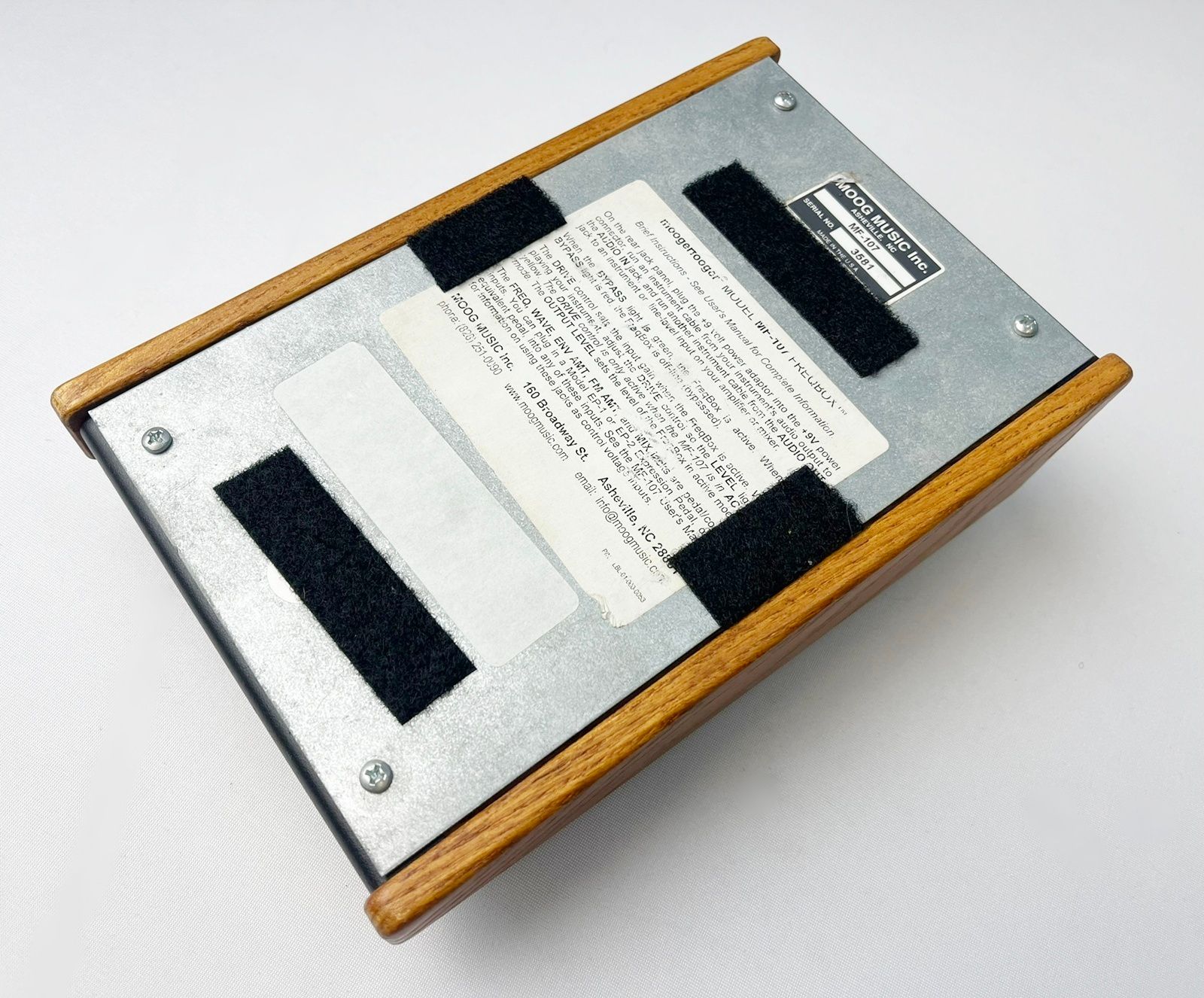

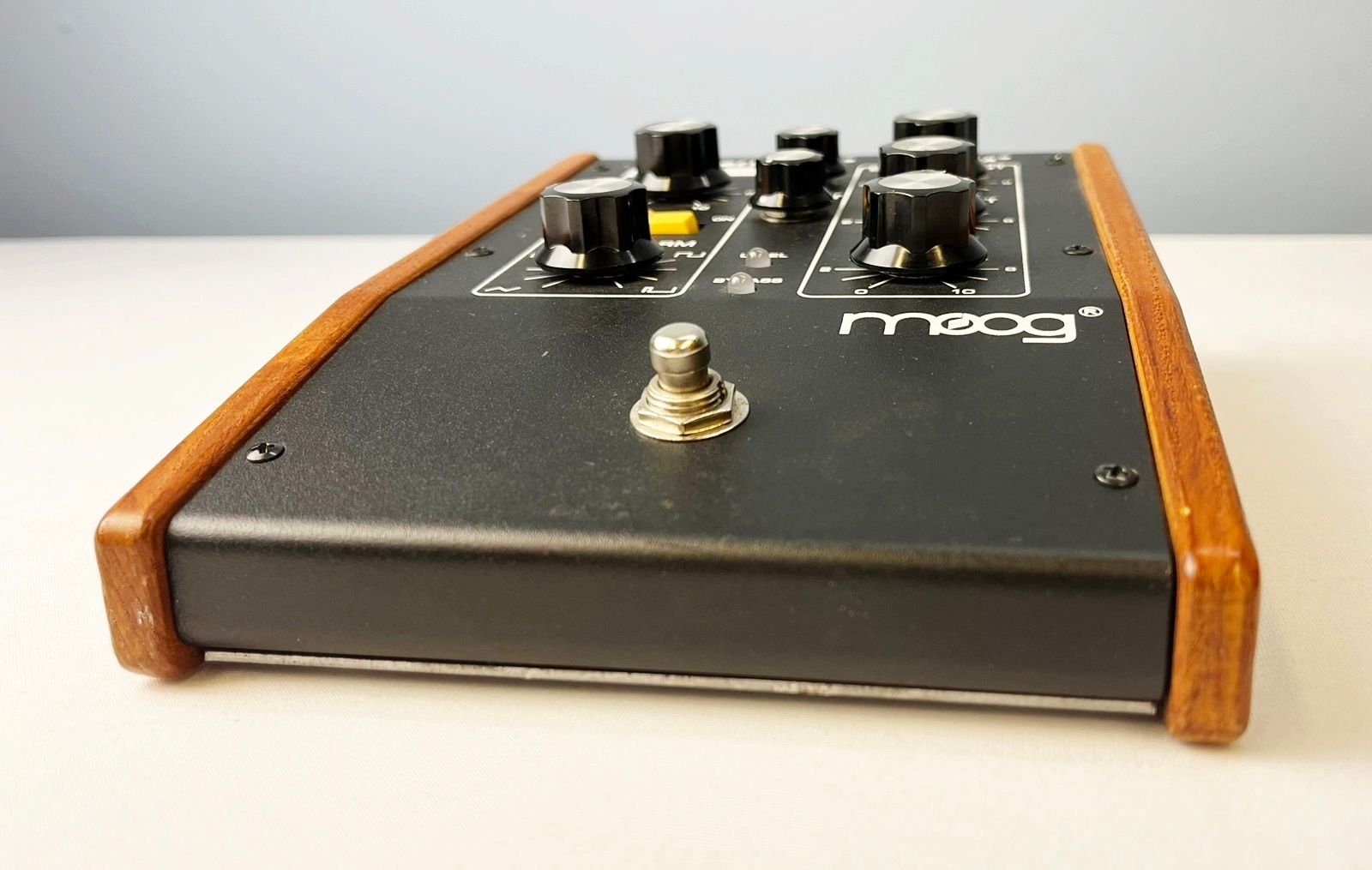

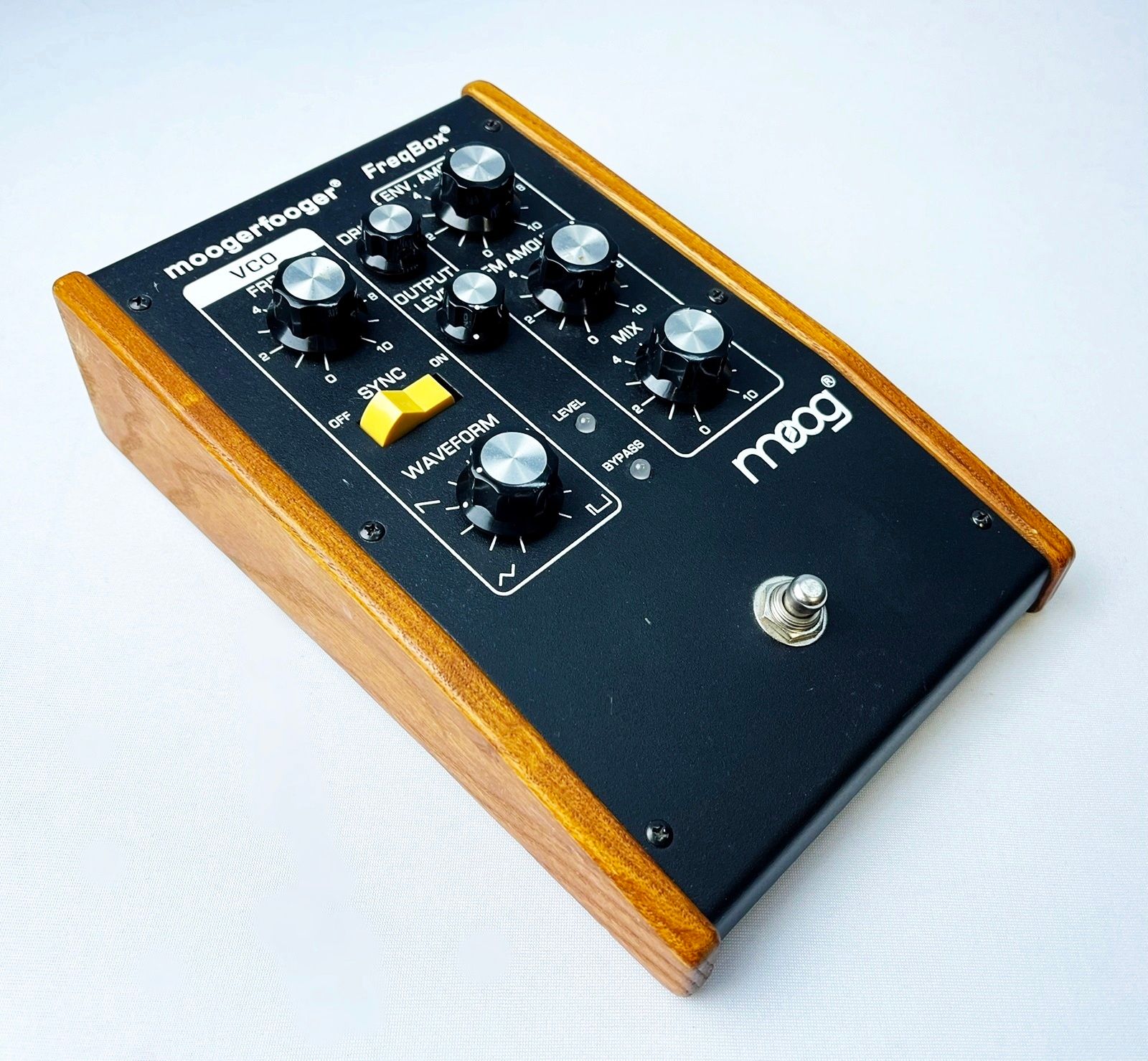

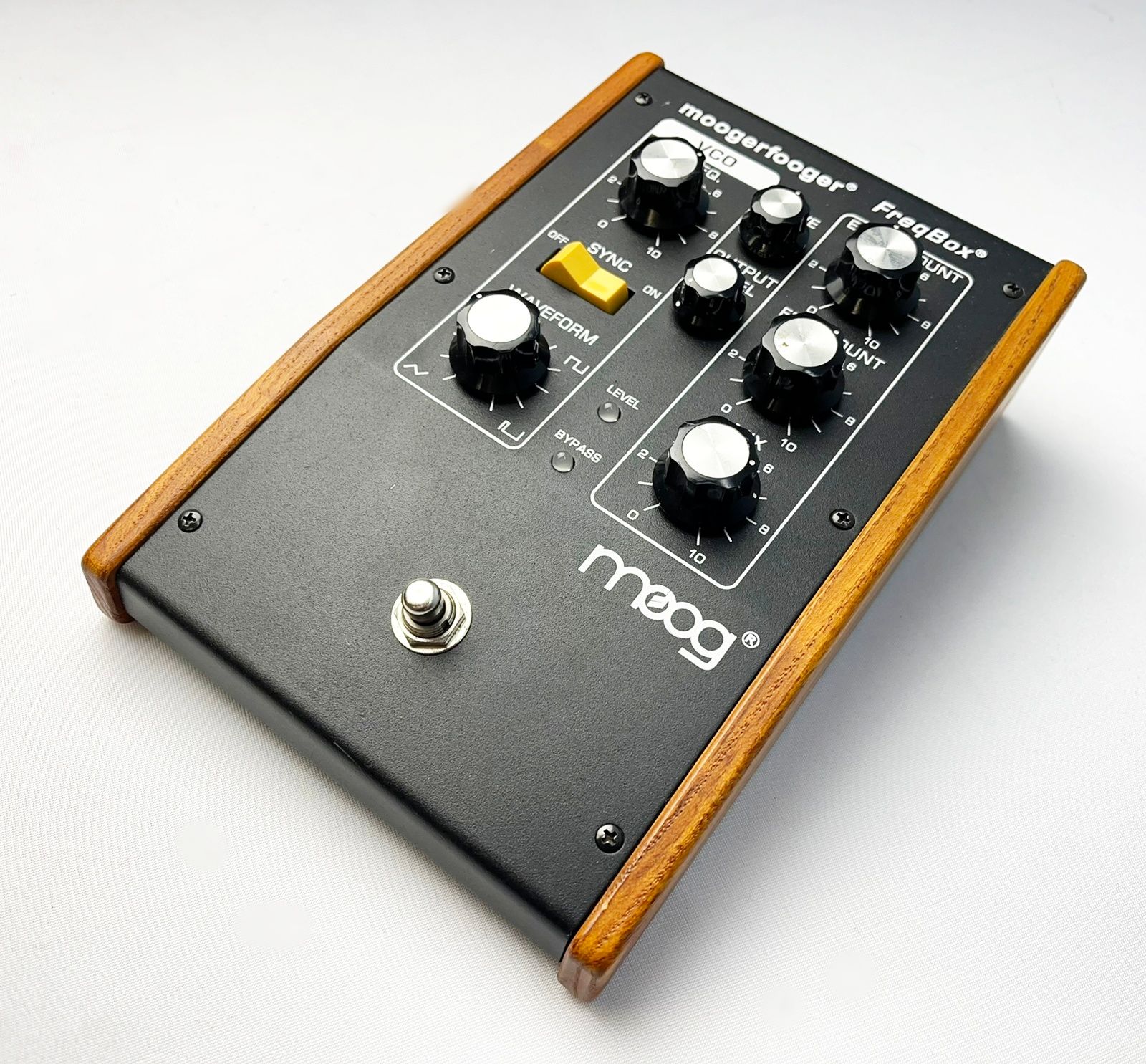

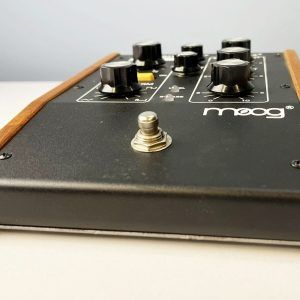

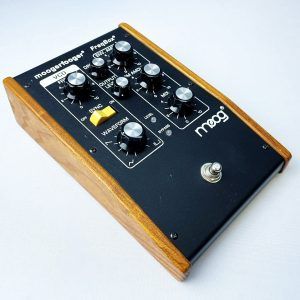

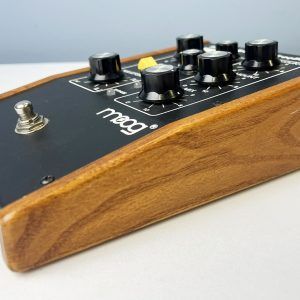

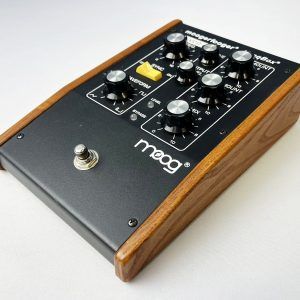

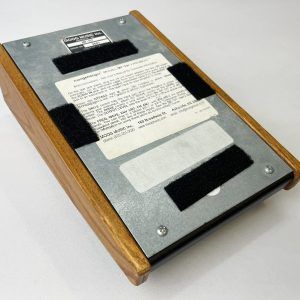

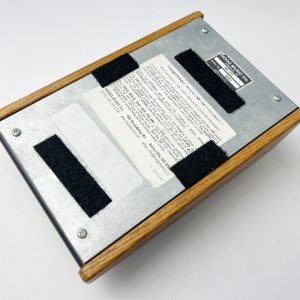

This is a USED pedal. It has been tested by our shop and is in great cosmetic and working condition; With just a few scratches and blemishes on the wooden enclosure (see photos).
We ask you to look at our pictures and invite you to contact us with any additional questions.
The Moog MF-107 FreqBox is a powerful analog oscillator pedal that reacts dynamically to your instrument’s input, creating wild synth tones, FM textures, and synced sweeps. With CV control, waveform blending, and an envelope follower, it transforms guitars, drums, or synths into gritty, organic, and harmonically rich sounds. A must-have for experimental musicians and tone explorers.

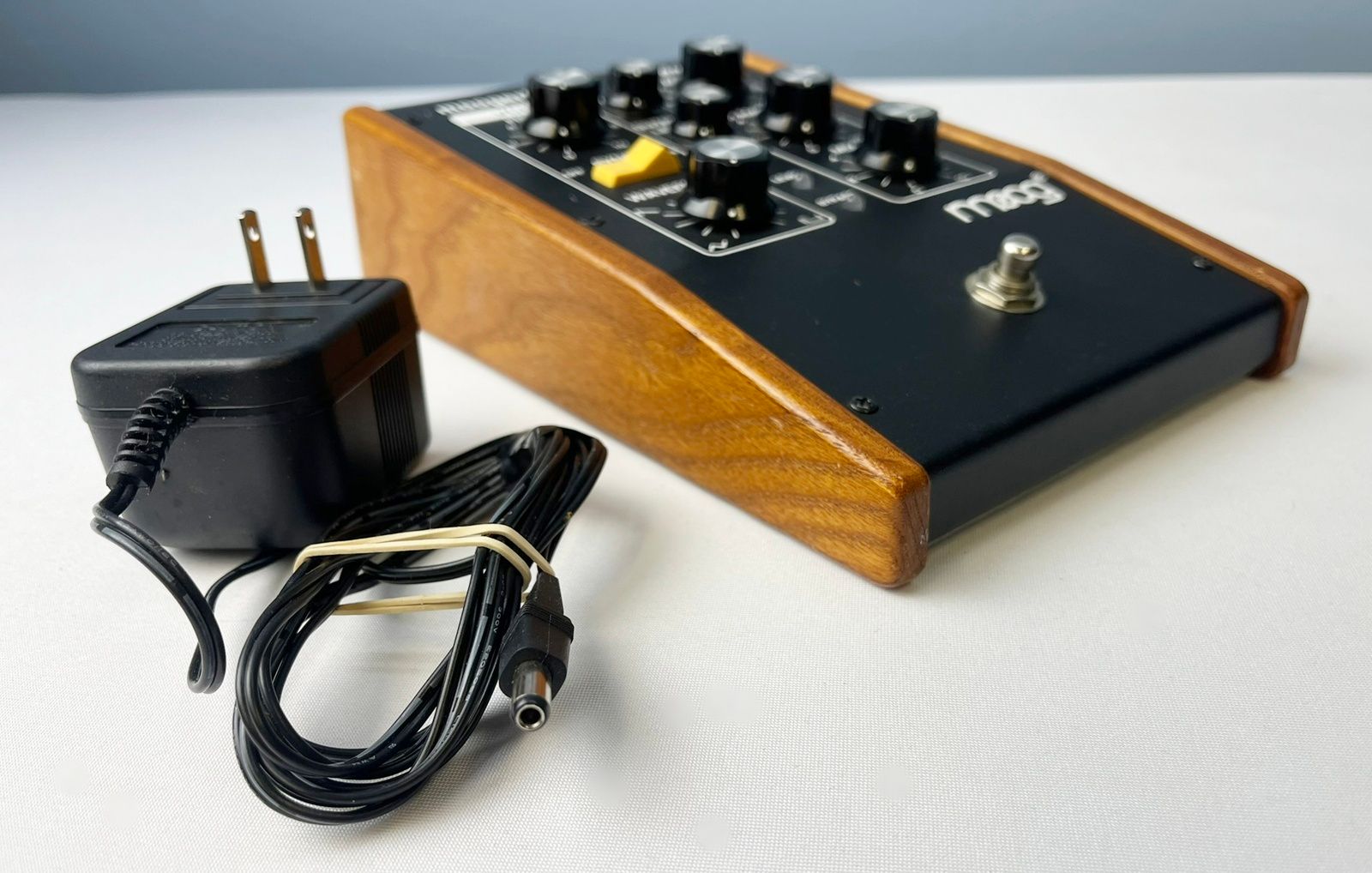

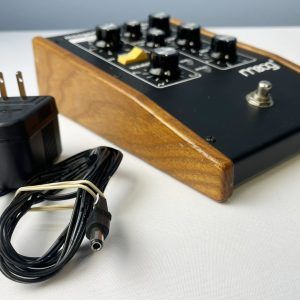

Includes a power supply
Features

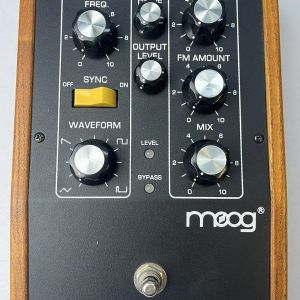

- Analog VCO with continuously variable waveform (triangle → sawtooth → square → narrow pulse)
- Frequency control range: approximately 25 Hz to 1.6 kHz
- Hard-sync function allows the internal oscillator to sync to the input signal
- Envelope follower dynamically modulates oscillator frequency and amplitude
- Frequency modulation (FM) by the input signal for rich harmonic textures
- Mix control blends between the dry input and the modulated VCO signal
- Drive control sets input sensitivity (instrument to line level) with LED level indicator

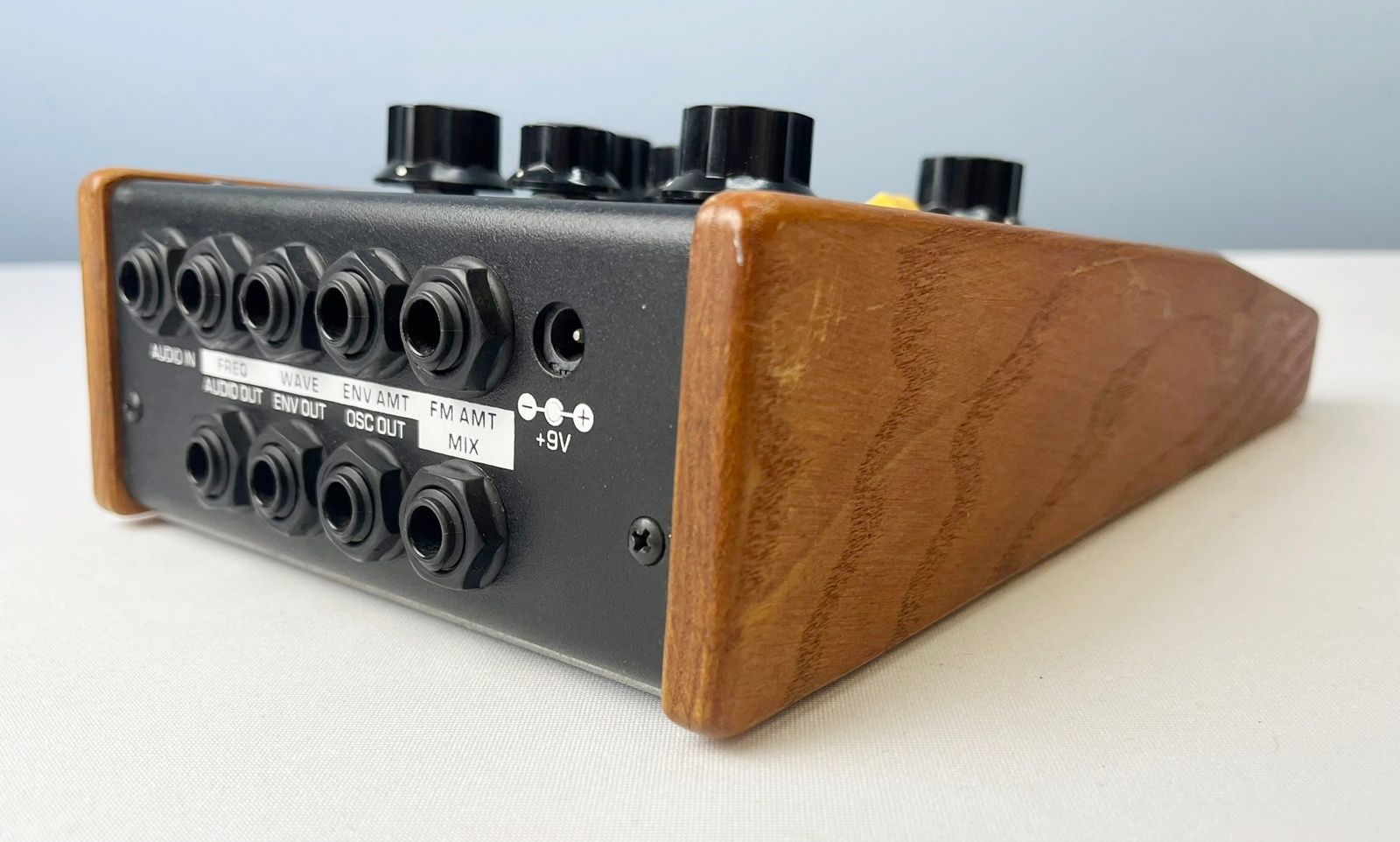

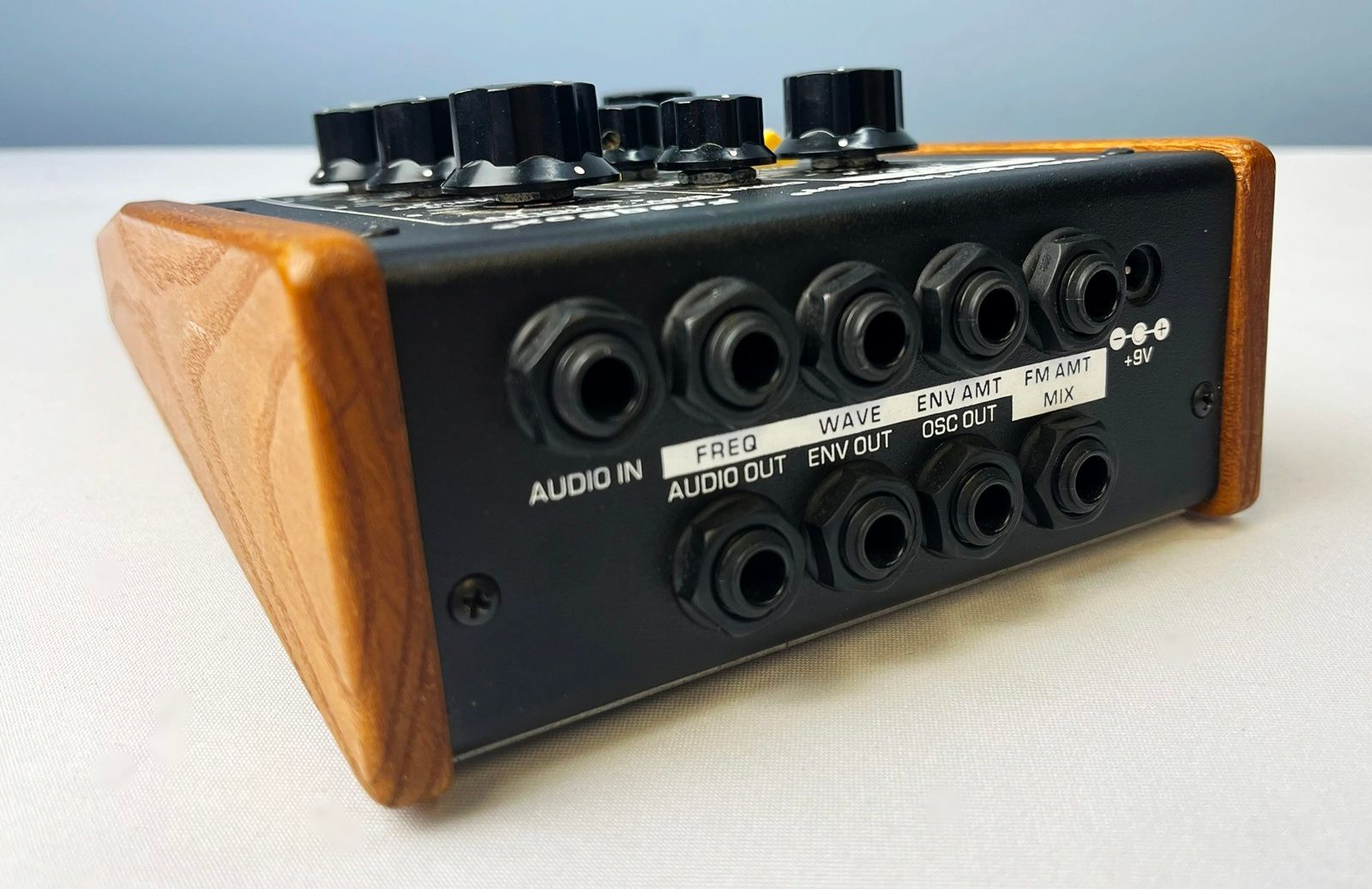

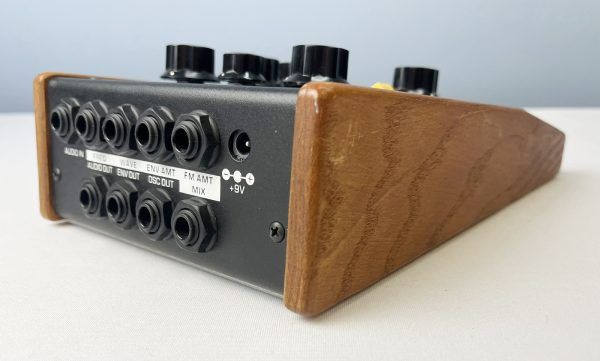

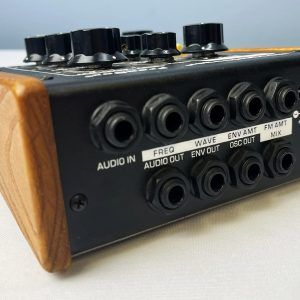

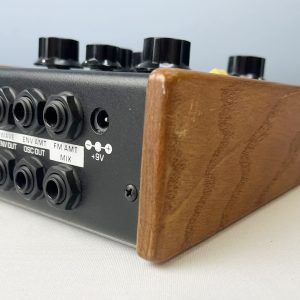

- Five CV inputs for external control of Frequency, Waveform, Env Amount, FM Amount, and Mix
- CV outputs for VCO signal and envelope follower voltage
- 9 V DC power input (approx. 200 mA current draw) (power supply included)
- Rugged construction with classic Moog build quality
Specifications
- Audio Input: Accepts instrument-level to line-level sources
- Audio Output: ¼″ phone jack, nominal –4 dBm, max +10 dBm, output impedance ~1 kΩ
- CV Input Range:
- Frequency: –5 V to +5 V
- Waveform, Env Amount, FM Amount, Mix: 0 V to +5 V
- Outputs: Envelope follower voltage output, raw VCO output
- Bypass Type: Buffered bypass
- Dimensions: 9″ × 6″ × 2.5″ (228 × 152 × 64 mm)
- Weight: Approximately 2 lb.
