Description

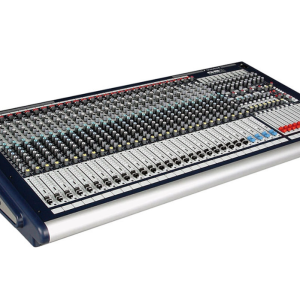

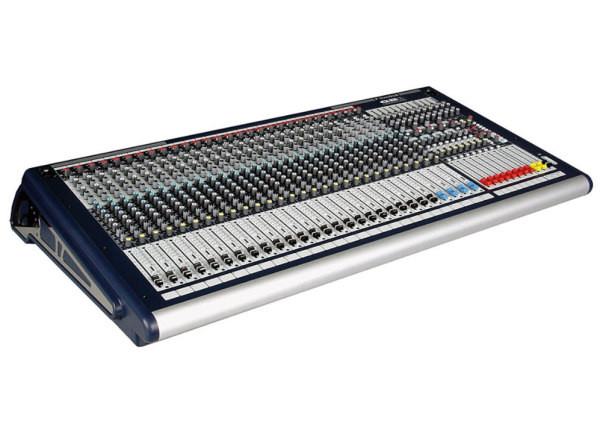

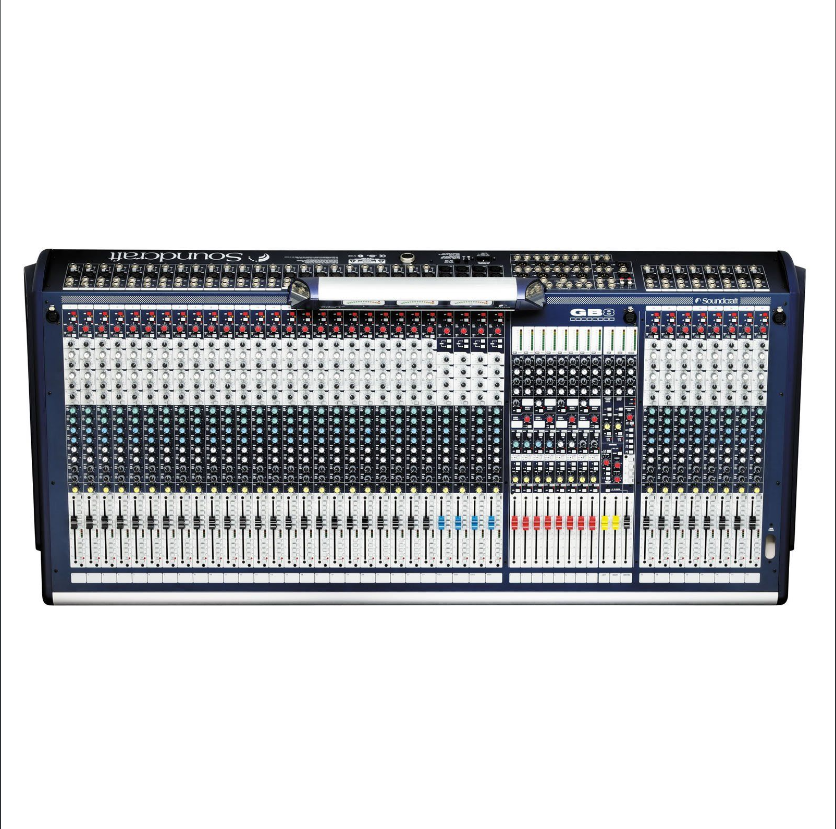

Experience professional-grade mixing with the Soundcraft GB8 24-Channel Mixing Console, a high-performance desk designed for live sound, installations, and touring systems. This brand-new unit ships free to the lower 48 and is backed by Soundcraft’s renowned build quality and sonic excellence.

The GB8 incorporates the GB30 mic preamps and EQ, created by Soundcraft co-founder Graham Blyth and inspired by the flagship MH3 and MH4 consoles. Its precision-engineered design delivers exceptional clarity, musical EQ shaping, and highly flexible routing options suited for both FOH and monitor applications.

With dual-mode operation, the GB8 can instantly transform from front-of-house to monitor duties with a single button, making it one of the most versatile consoles in its class. It includes 11 true busses, 8 auxiliary sends, 4 mute groups, and an 11×4 matrix, allowing advanced sub-mixing and routing for professional workflows. Four stereo inputs and a powerful 4-band GB30 EQ further expand your creative and technical flexibility.

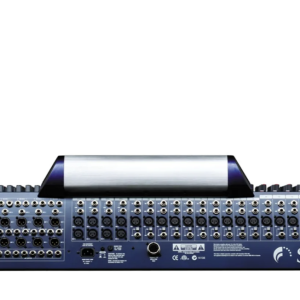

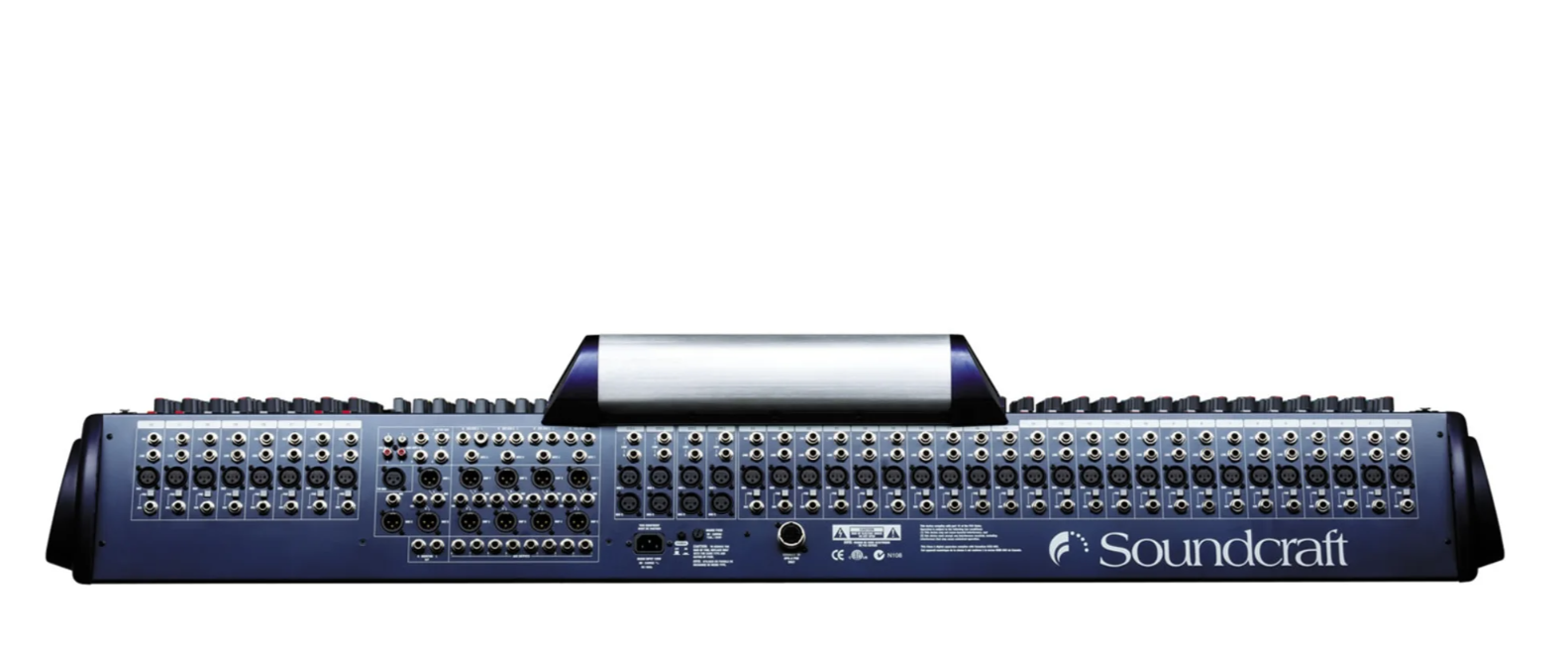

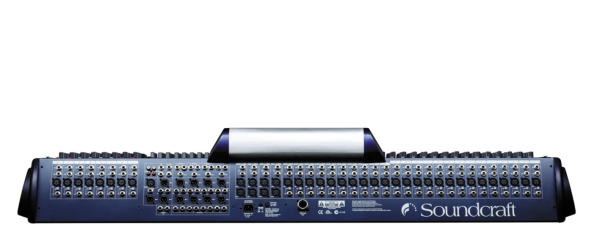

The GB8 features innovative mechanical construction with a rugged steel chassis, vertically mounted PCB design, and a sloped rear connector panel for efficient system setup. It includes an internal power supply with external PSU link option, limiter-equipped Record and Alternate outputs, and a meter bridge equipped with True VU meters plus LED metering for precise visual monitoring.

Designed for churches, venues, touring rigs, and performance environments, the GB8 builds on the proven success of the GB4—popularly used in legendary locations like the Cavern Club in Liverpool. With superior ergonomics, robust engineering, and truly musical sound, the GB8 delivers all the power and reliability expected from Soundcraft’s premium line.

Features & Specifications

Key Features

• 24-channel, 8-bus professional analog console

• New GB30 mic preamps and GB30 4-band EQ

• 4 stereo channels (mic or line capable with 48V and mic amps)

• Dual-mode FOH/Monitor operation with one-touch switching

• 11 true busses: 8 subgroups + L/R/C

• 8 aux sends with flexible pre/post assignment

• 4 mute groups

• 11 x 4 output matrix for advanced sub-mix routing

• True VU overbridge metering for L/R/C with LED metering per input

• Internal PSU with external PSU link option

• Direct outs on all mono channels

• Rugged steel chassis with sloped connector panel

• Mechanical integrity with vertically mounted PCBs and nutted pots

• Limiter on Record and Alternate outputs

• 1 kHz oscillator for test/line checking

• Designed for FOH, monitors, installed sound, and touring
