Description
Overview

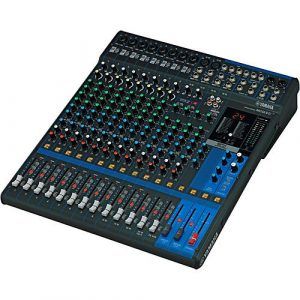

The MG16XU boasts an intuitive interface with capacities suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability that has made it a leader in its class. The MG16XU can take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha, the MG16XU is ready to work for you.
Features
- Outstanding microphone preamps
- Switchable Phantom Power & PAD Switch
- 1-knob Compressors
- EQ and High-pass Filters
- AUX / Effect Sends / Group
- LED level metering
- Built-in SPX Digital Effects
- Metal Chassis
- USB
Specifications
- On-board processors : SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
- Phantom power: +48 V
- Digital I/O: USB Audio Class 2.0 compliant, Max 192 kHz, 24-bit
- Input Channels: 8 Mono[MIC/LINE], 2 Mono/Stereo[MIC/LINE], stereo[LINE]: 2
- Output Channels: STEREO OUT: 2
- MONITOR OUT: 1
- PHONES: 1
- AUX SEND: 4
- GROUP OUT: 4
- Bus: Stereo: 1, GROUP, AUX: 4
- PAD: 26 dB (Mono)
- HPF: 80 Hz, 12 dB/oct (Mono)
- COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
- EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
- EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
- Level Meter: 2 x 12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
