Description
Overview
Save big on this MINT OPEN BOX Crestron DM-NVX-360 (Black). Compare to the standard retail price of $1,980.00!
We invite you to review all pictures and reach out with any questions.

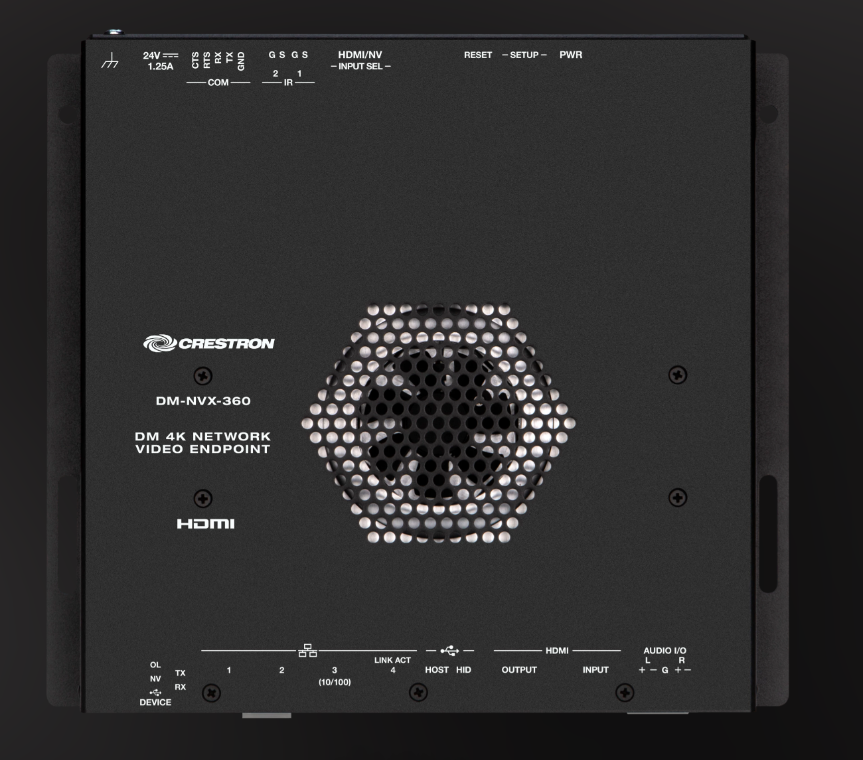

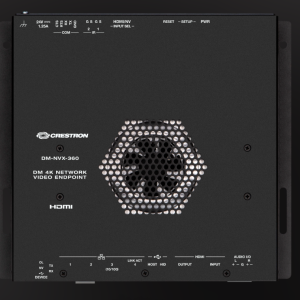

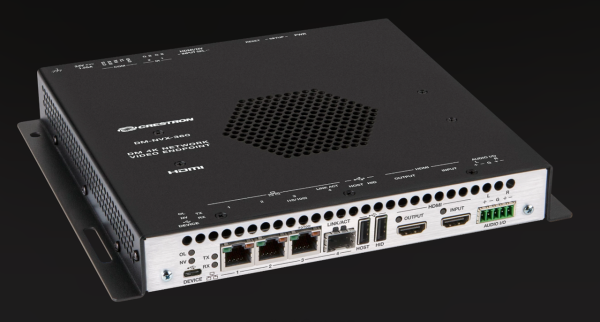

The DM-NVX-360 is a dependable, high-performance AV-over-IP encoder/decoder engineered to deliver 4K60 4:4:4 video over standard Gigabit Ethernet with no perceptible latency or loss of quality.
It supports HDR, HDCP 2.3, adaptive bit rate, built-in scaling, video wall processing, USB/KVM routing, AES67 transmit/receive, and optional fiber connectivity—making it a top-tier choice for enterprise, campus, government, and modern AV distribution systems.
Key Features
-
4K60 4:4:4 encoding/decoding
-
HDR & HDCP 2.3 support
-
Ultra-low latency
-
AES67 transmit/receive
-
USB 2.0 extension + KVM routing
-
Video wall processing
-
Adaptive bit rate streaming
-
Secure 3-Series+ control integration
-
Optional SFP fiber connectivity
-
Flexible power via PoE+ or optional supply
Specifications
Audio
-
Input Types: HDMI (Dual-Mode DP compatible), analog stereo
-
Output Types: HDMI, analog stereo
-
Supported Digital Formats: Dolby Digital, Dolby Atmos, DTS:X, LPCM (up to 8 ch)
-
Analog Format: Stereo 2-channel
-
A/D & D/A Conversion: 24-bit / 48 kHz
-
AES67: 24-bit / 48 kHz
-
Performance:
-
Frequency Response: 20 Hz–20 kHz ±0.5 dB
-
S/N Ratio: >95 dB
-
THD+N: <0.005% @ 1 kHz
-
Stereo Separation: >90 dB
-
Output Volume: −80 to +20 dB
-
Communications
-
Ethernet: Auto-switching, TCP/IP, UDP/IP, DHCP, SSL, TLS, SSH, SFTP, IEEE 802.1X, Active Directory, IPv4/IPv6
-
USB: USB 2.0 host/device routing
-
RS-232: 2-way, up to 115.2k baud
-
IR/Serial: 1-way IR or TTL serial
-
HDMI: HDCP 2.3, EDID, CEC
-
DM NVX: HDCP 2.3, AES-128 encryption, RTP, secure RTSP, IGMPv2/v3

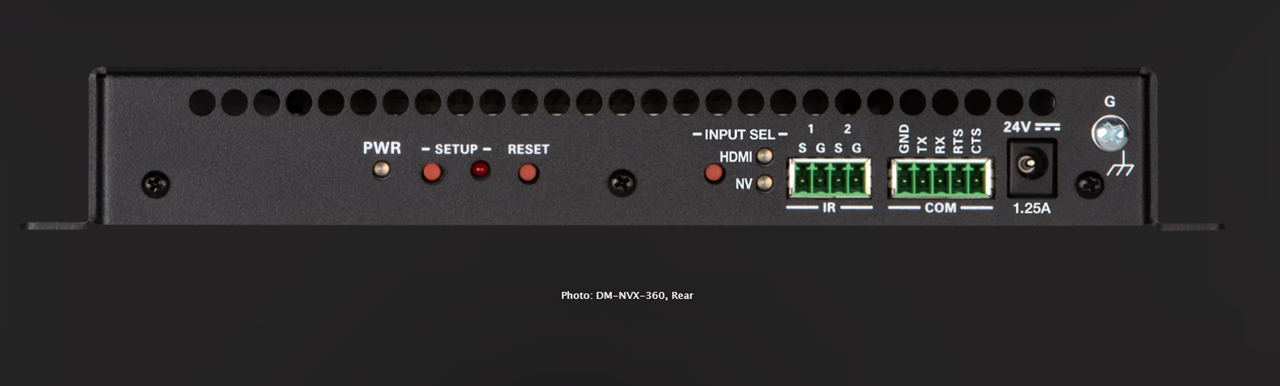

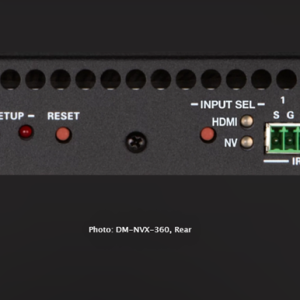

Connectors
-
USB-C Device (USB 2.0)
-
USB-A Host (500 mA)
-
USB-A HID (500 mA)
-
Ethernet 1: RJ-45, PoE+
-
Ethernet 2–3: RJ-45
-
Ethernet 4: SFP
-
HDMI In & Out (Type-A)
-
Audio I/O (balanced/unbalanced)
-
IR (2), RS-232, DC power input, chassis ground
Controls & Indicators
-
Power LED
-
Setup button + LED
-
Reset button
-
Input select + signal LEDs
-
Status indicators for NVX mode, Ethernet, HDMI, and more
Power
-
PoE+: IEEE 802.3at Type 2
-
Optional Supply: PW-2412WU
-
Consumption: 20 W typical
Environmental
-
Operating Temp: 32°–104°F (0°–40°C)
-
Humidity: 10–90% non-condensing
-
Acoustic Noise: 33 dBA
Enclosure
-
Metal chassis, black finish
-
Fan-cooled
-
Freestanding, surface-mount, or rack-mount capable
Dimensions & Weight
-
Height: 8.61 in (219 mm)
-
Width: 9.27 in (236 mm)
-
Depth: 1.25 in (32 mm)
-
Weight: 2.0 lb (0.91 kg)
Shipping Information
We offer worldwide shipping; international buyers should contact us for a precise quote.
-
All orders within the continental U.S. ship within 1 business day
-
Items ship fully insured
-
We use custom double-walled boxes for maximum protection
-
Original manufacturer boxes may not be included
-
Large items shipping to PO Boxes may incur extra charges
-
Orders over $50 require a signature unless waived (buyer assumes all risk)
Returns
-
Original shipping cost is non-refundable
-
10% restocking fee for non-defective returns
-
Item must be returned in its original condition
