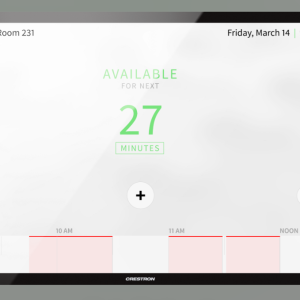

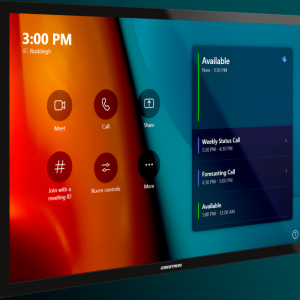

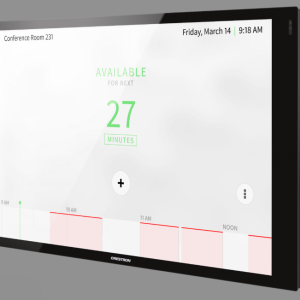

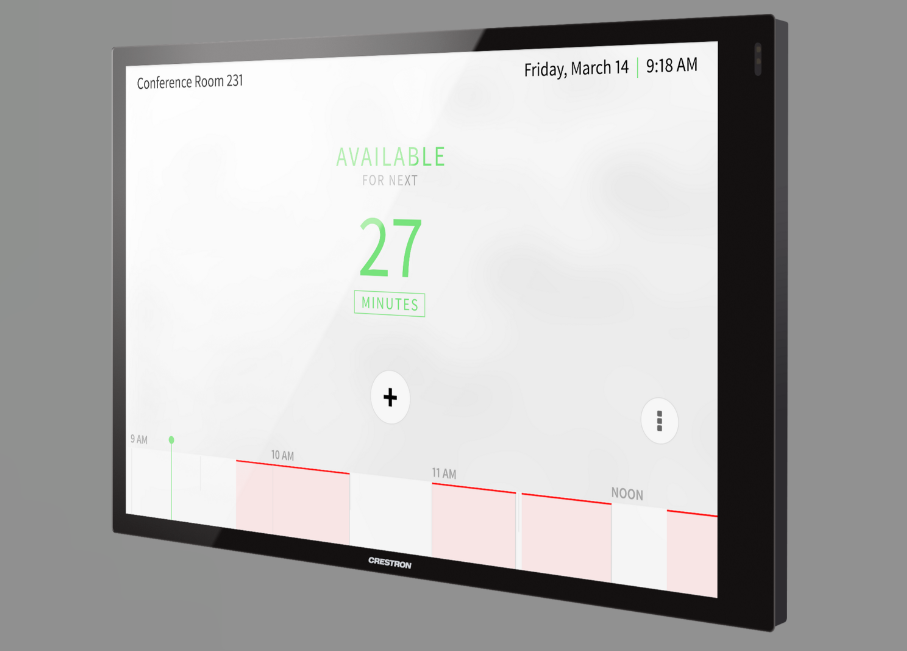

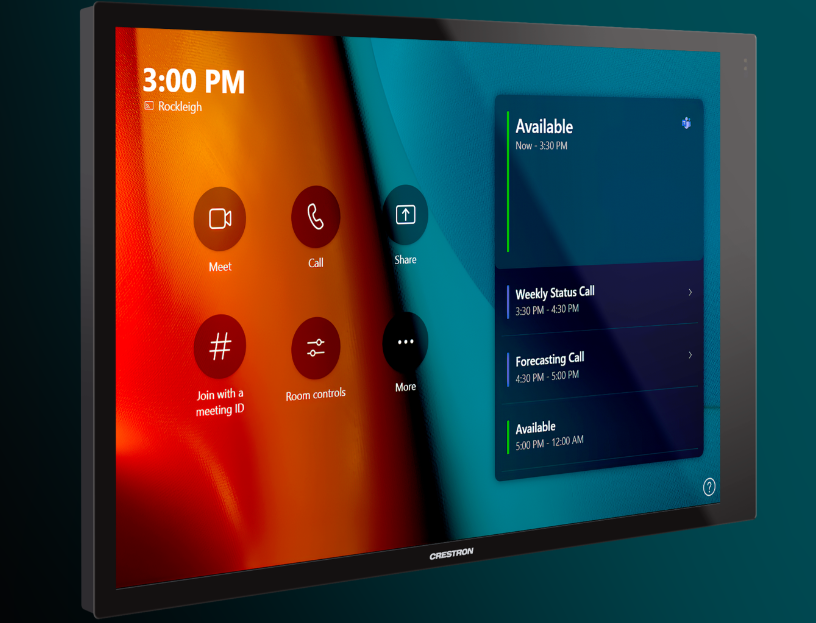

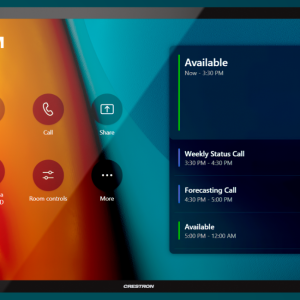

Crestron TSW-1070-B-S Wall Mount Touch Screen.
Unlock powerful control, automation, and scheduling capabilities with the Crestron TSW-1070-B-S Wall Mount Touch Screen. This sleek 10.1″ panel delivers exceptional clarity and responsiveness thanks to its TFT active-matrix color LCD, 1920×1200 resolution, and 400-nit brightness. The projected capacitive touch system supports smooth 5-point multitouch interaction, perfect for conferencing rooms, classrooms, home control environments, and high-end smart spaces.

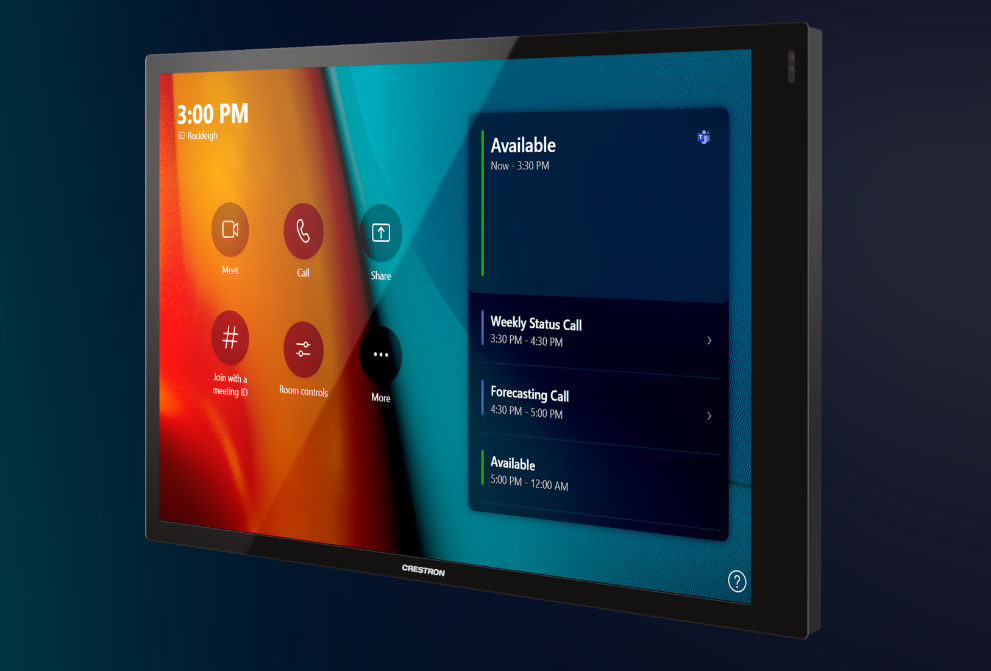

This OPEN BOX unit is in near-mint condition and priced well below standard retail. It supports PoE+ network power, dual-band Wi-Fi, Bluetooth beaconing, and advanced security protocols. Built-in apps include room scheduling, Sonos®, Zoom Rooms™, and Crestron Home®, making deployment easy in virtually any system.
The TSW-1070-B-S supports H.265/H.264 video streaming, features a single scalable video window, and includes a Rava® SIP intercom for integrated communication. Multiple languages, advanced HTML5 support, an onscreen keyboard, and robust browser functionality make this one of Crestron’s most capable touch screens.
Backed by professional-grade construction, multiple mounting options, and a full suite of connectivity features, this touchscreen is ideal for upgrading or expanding your control ecosystem—while saving significantly with an open-box price.
FEATURES
Display
-
TFT active-matrix color LCD
-
10.1″ diagonal (257 mm)
-
16:10 WUXGA
-
1920 × 1200 resolution
-
400 nits brightness
-
1000:1 contrast ratio
-
24-bit color depth (16.7M colors)
-
Edge-lit LED w/ automatic brightness
-
±80° horizontal/vertical viewing angles
-
5-point capacitive multitouch
Buttons
-
(6) Virtual buttons (Power, Home, Lights, Up, Down, Mic)
-
Rear-panel hardware reset
Graphics & Built-In Apps
-
Crestron HTML5 & Smart Graphics®
-
Multi-language browser & keyboard
-
Screensaver support
-
Streaming video window (H.265/H.264)
-

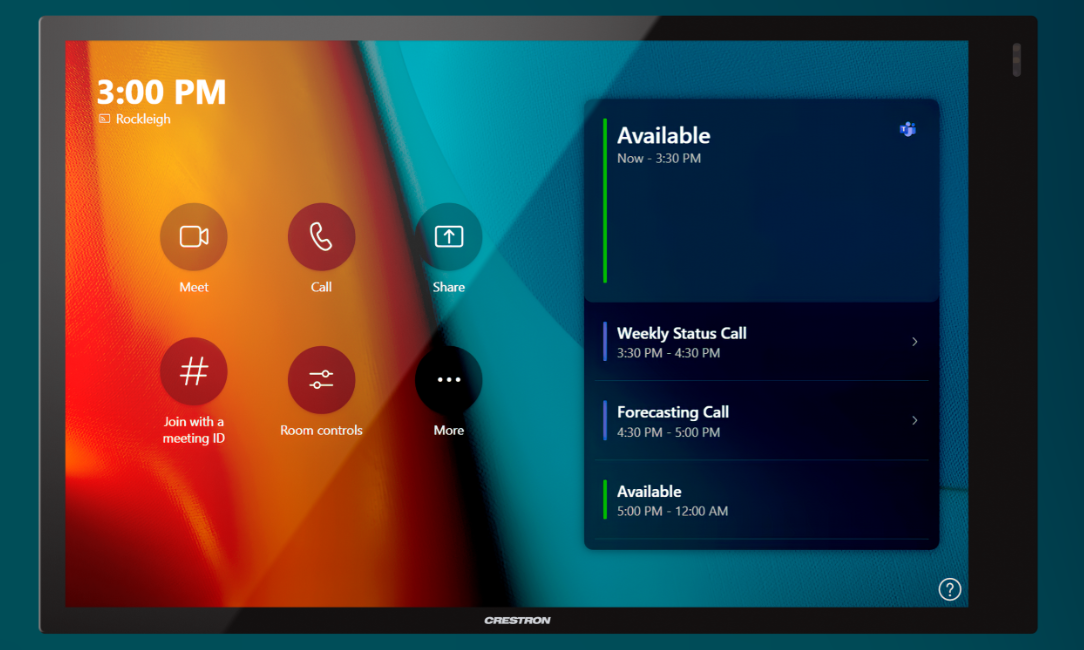

Native apps:
-
Crestron Scheduling
-
Sonos®
-
Zoom Rooms™
-
Crestron Home® OS
-
-
System setup via browser, cloud, or on-device UI

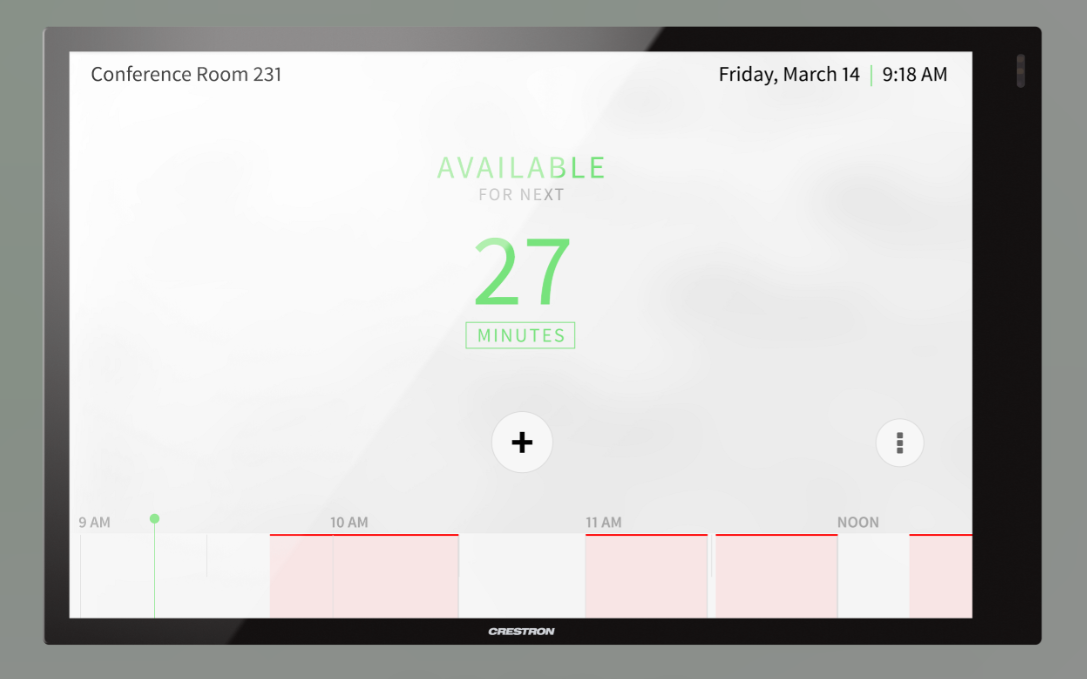

Room Scheduling Compatibility
-
Microsoft Exchange / Office 365
-
Google Calendar / G Suite
-
Crestron Fusion®
-
CollegeNET 25Live®
-
Ad Astra®
-
IBM Notes (via on-prem Fusion)
-
Several third-party apps
Languages
-
Smart Graphics: 30+ languages
-
Keyboard: 25+ languages
-
Voice Recognition: multi-region
-
Browser: 40+ languages
-
Scheduling: 15+ languages
Memory
-
2 GB LPDDR3 RAM
-
16 GB eMMC pSLC storage
-
Maximum project size: 600 MB
Wired Connectivity
-
100 Mbps Ethernet (DHCP, SSL, TLS, SSH, SFTP, 802.1X, XiO Cloud®)
-
(2) USB-A host ports
Wireless Connectivity
-
802.11 a/b/g/n/ac (2.4 & 5 GHz)
-
WEP/WPA/WPA2-PSK security
-
Up to 50 ft range
-
Crestron Bluetooth beacon
Streaming Decoder
-
H.265 / H.264 / MJPEG
-
AAC stereo audio
-
Up to 1080p@30fps
-
RTSP protocol
Audio
-
Integrated mic & speakers
-
Rava® SIP intercom
-
MP3 feedback support

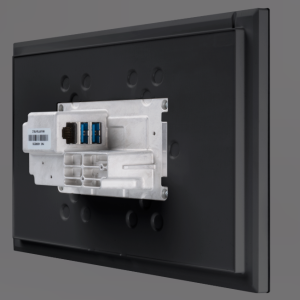

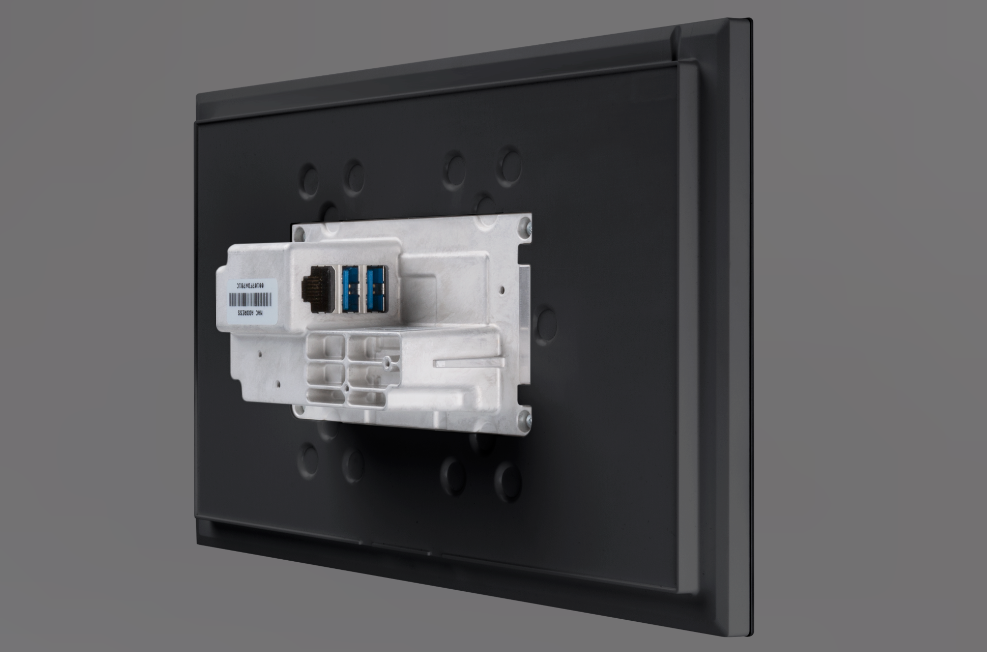

Connectors
-
(1) RJ-45 PoE+
-
(2) USB-A (host)
-
Supports light bar & RFID reader
Power
-
PoE+ IEEE 802.3at Type 2
-
Typical 15 W (up to 30 W depending on config)
-
USB accessories require PoE+
Environmental
-
32–104°F (0–40°C) operating
-
10–95% RH (non-condensing)
-
Heat dissipation: 44 BTU/hr
Construction & Mounting
-
Black housing
-
Edge-to-edge glass
-
Fits:
-
2–3 gang US
-
2-gang EU (DIN 49073)
-
2-gang UK (BS 4662)
-
Lectern cutout (2″ x 3.75″)
-
-
Min depth: 1.38″ (35 mm)
Dimensions & Weight
-
5.87″ H × 9.46″ W × 2.01″ D
-
1.61 lb (730 g)
